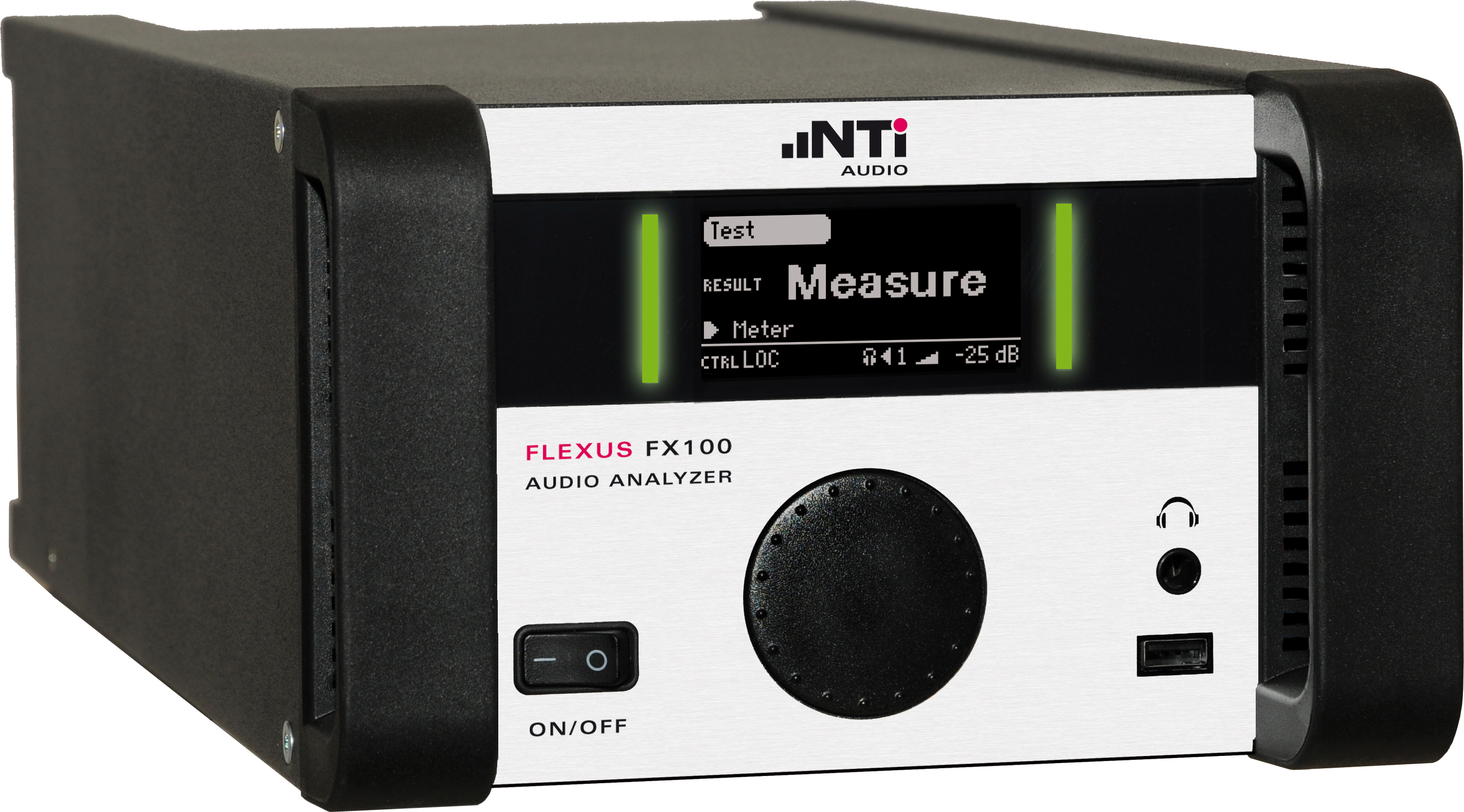

FX100 Digital Audio Analyzer

FX100 New Digital Audio Extension

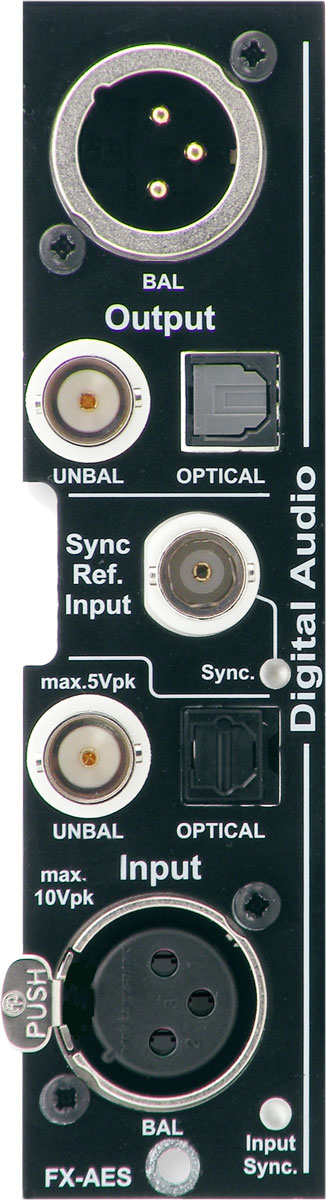

The new FX-AES Digital Audio Module extends the FX100 with two digital outputs & inputs. The FX100 and FX-AES module together form the FX100-D Analyzer for analog and digital audio.

The FX100-D supports AES3, AES3id, S/PDIF and TOSLINK functionality with a freely selectable sampling rate up to 192 kHz and a sync input for external clock sources. It allows testing of analog-to-digital or digital-to-analog devices such as A/D or D/A converters, as well as purely digital devices.

The signal generator may be clocked by the internal high-precision oscillator in a range from 28 kHz and 192 kHz. Alternatively, the signal source can be synchronized to a wide range of external clock references such as AES3 house clock, PAL/NTSC video clock or to the AES3 analyzer input sample rate. The analyzer measures the sampling frequency fs at the AES3 inputs and the sync input in parallel.


Video FX100 Digital Audio Extension



Markus Becker, Technical Director at NTi Audio, introduces the Digital Audio Extension of the FX100.

Watch the video "FX100 for Digital Audio"

All generator and analyzer functions of the new FX-AES digital interface are fully integrated in the FX-Control software. The FX100-D supports all kinds of cross-domain measurements such as A/A, A/D, D/A and D/D.

More details at www.nti-audio.com/FLEXUS
