The Impact Ball IB01 is an Impact source to carry out impact sound measurement in accordance with current building regulations and standards. It ensures precise impact noise measurements in accordance with the ISO 16283-2 standard and ISO 10140-5 in laboratory applications. This source provides low-frequency excitation from 50 Hz to 630 Hz band.
Every piece is tested on our reference test stand against the standard to ensure many years of reliable service.
Design

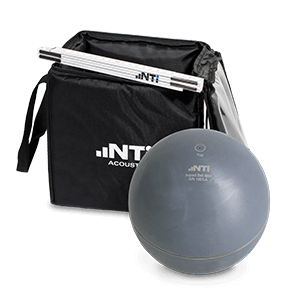

The Impact Ball consists of a rubber mixing of silicone with 180 mm in diameter and 2.50 kg weight and comes with a practical carrying bag and a meter
Operation
Typically, the ball is used on building elements like stairs or wooden floors and is dropped vertically from a height of 1 m (± 1 cm) at several positions. The Sound Pressure Level is measured in the receiving room with a Sound level Meter like XL2 or XL3. In combination with the Sound Insulation Reporter software the evaluation of measurements and the reporting is easely possible.
The Impact Ball has passed rigorous tests, including quasi-static, dynamic, life cycle tests with over 10,000 cycles, and performance behavior with different temperatures and humidity, confirming its quality. It complies with the ISO 16283-2 and ISO 10140-5 standards.
