The measurement microphones are optimized for a flat, free-field response in the frequency range 5 Hz – 20 kHz. Models for acoustic measurements of up to 155 dB are available.
All microphones are omni-directional and 48V phantom powered.
Phantom power 48 VDC
Frequency range 5 Hz – 20 kHz
Omni-directional, free-field microphone
Overview QC Microphones
Type
Classification
IEC 61672
ANSI S1.4
Microphone Capsule
Intrinsic noise typical
Maximum sound pressure level @ distortion factor 3%, 1 kHz
Typical Applications
M2010
Frequency Response
Class 1 / Type 1
1/2" detachable
24 dB(A)
145 dBSPL
Industrial Manufacturing
Quality Control
R&D
M2015
Frequency Response
Class 1 / Type 1
1/2" detachable
34 dB(A)
155 dBSPL
Industrial Manufacturing
Quality Control
High Level Measurements

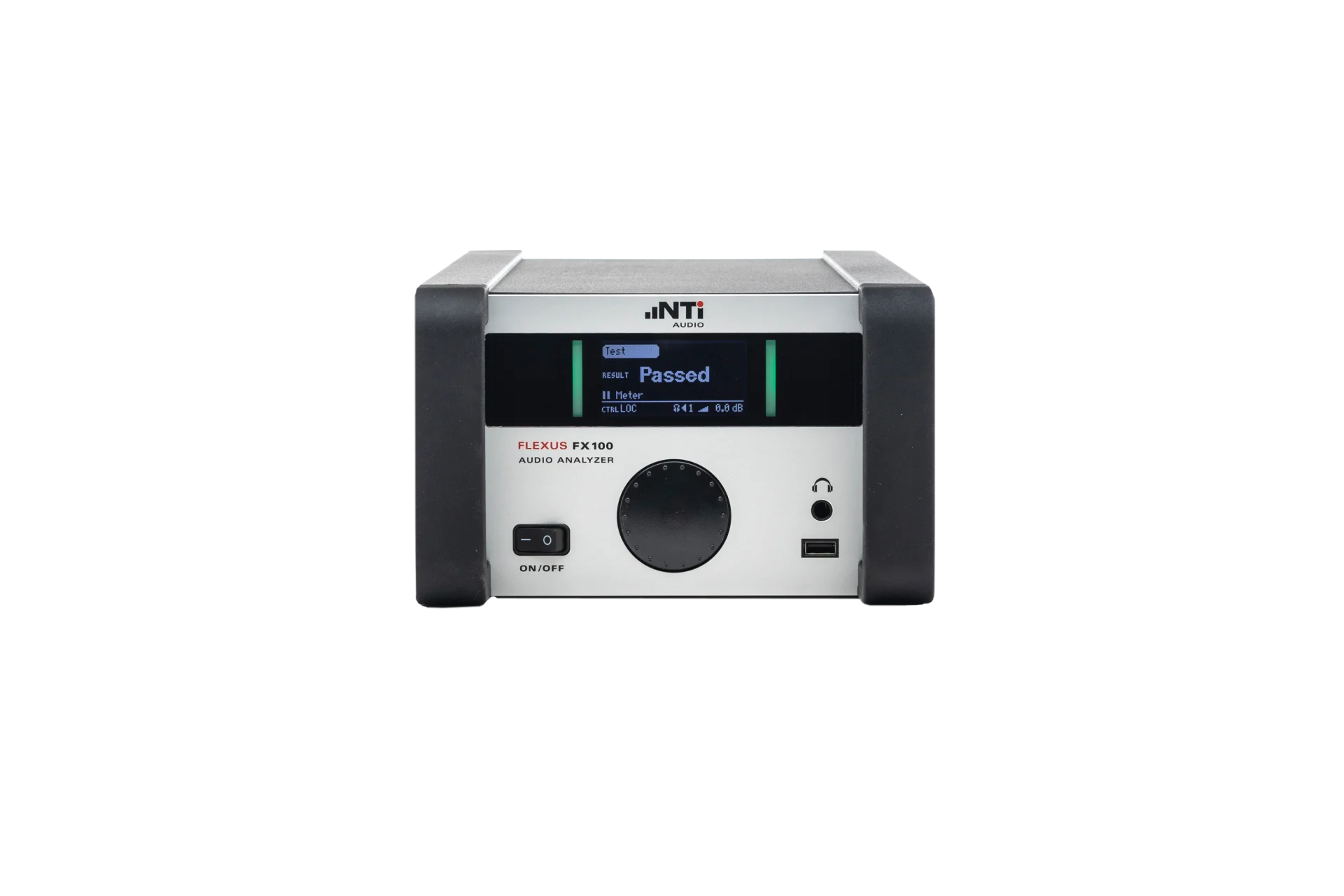

Measurement Microphones for FX100 Audio Analyzer

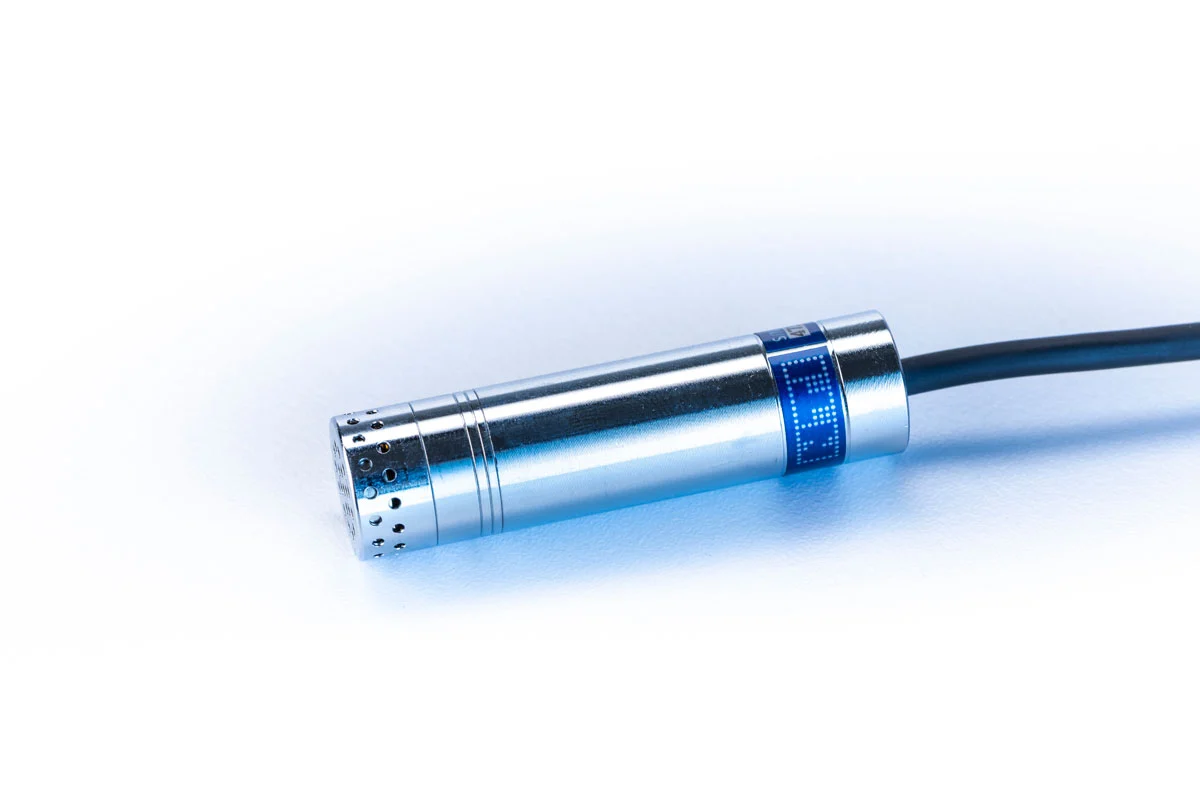

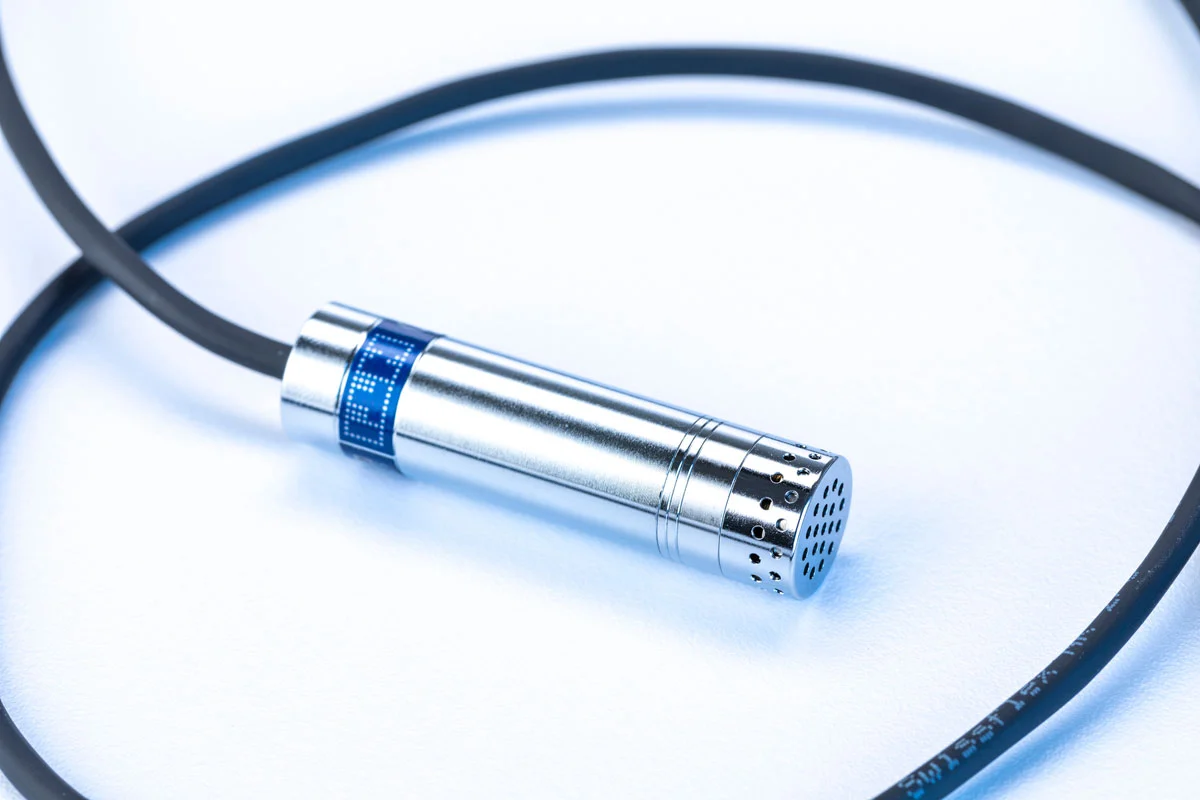

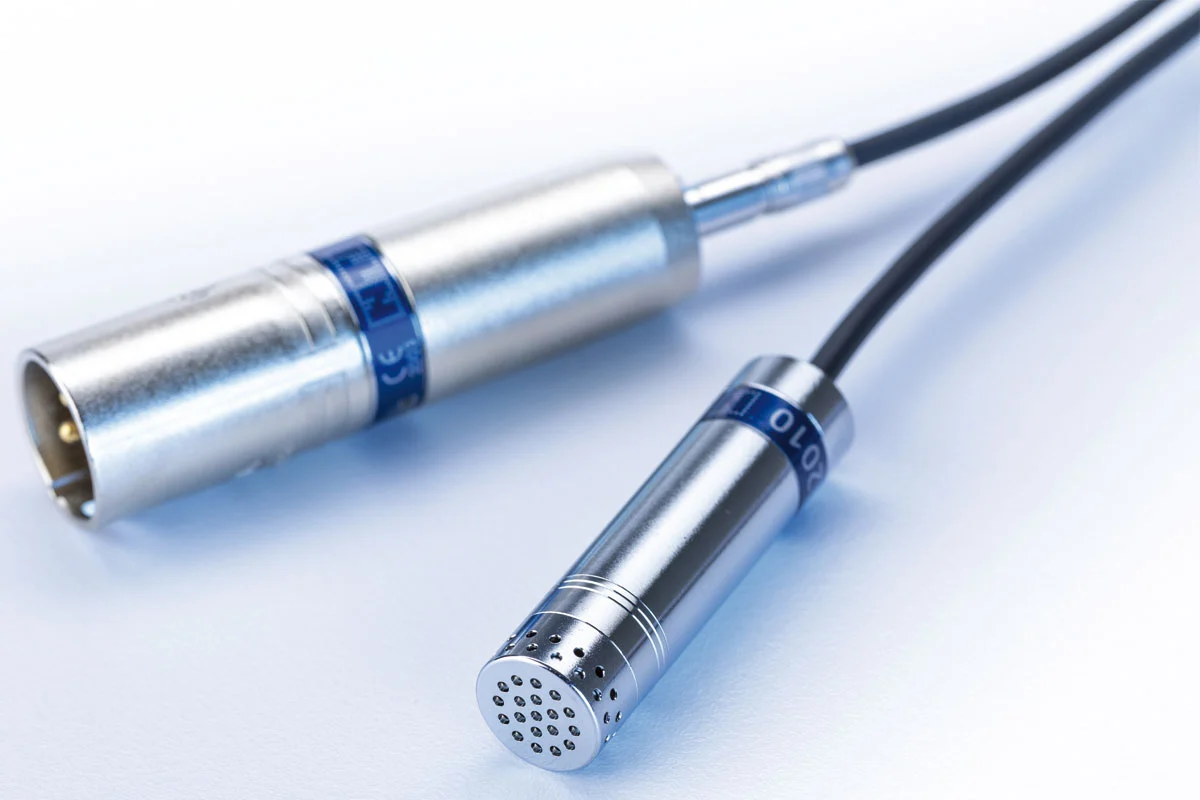

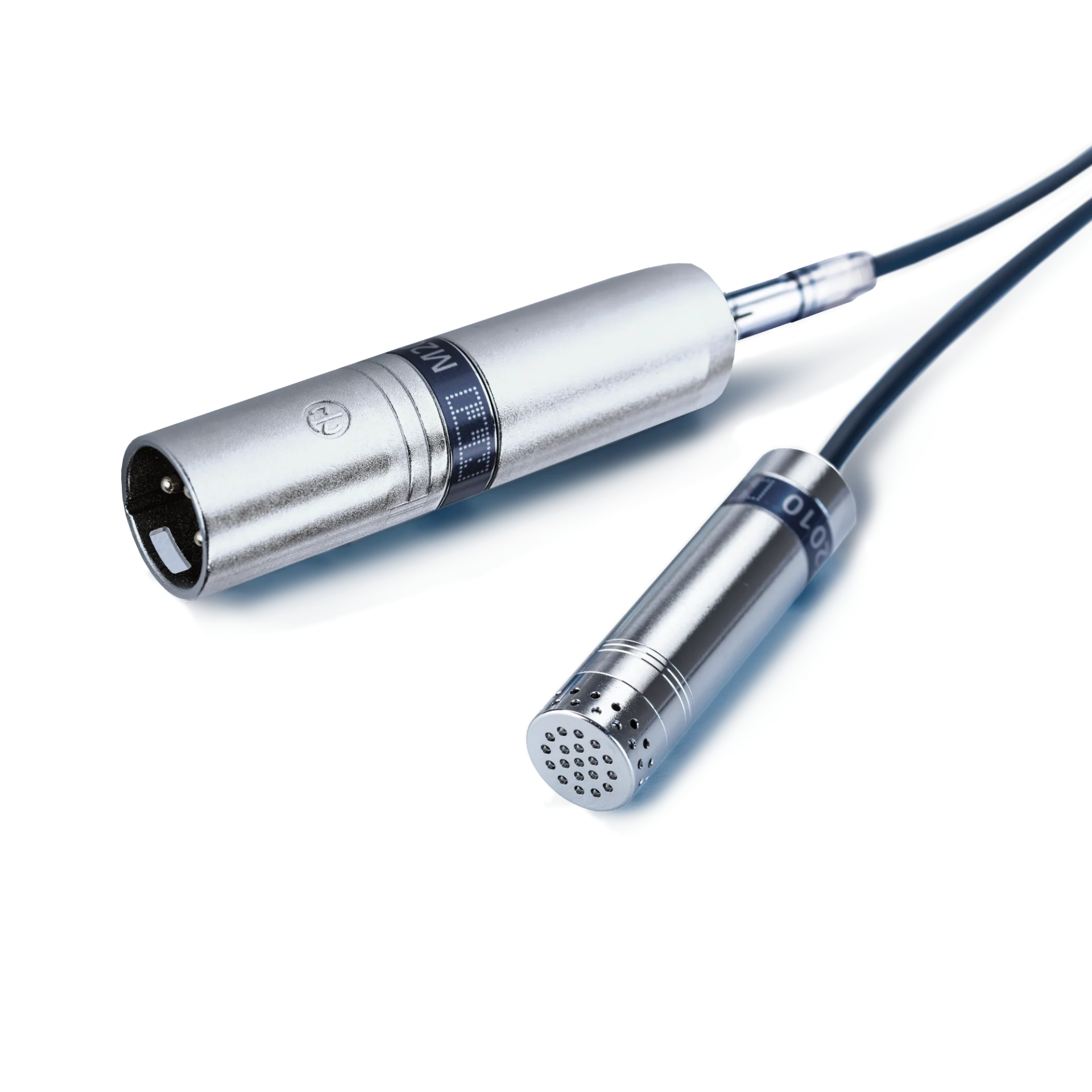

The M2010 and M2015 are compact, high-performance measurement microphones dedicated to research, design lab, end-of-line testing and service with the FX100 Audio Analyzer. They are particularly suited for applications with restricted available space. The connection cable to the preamplifier is detachable and a calibration certificate included.
Features:
1/2″ Omni-directional, free-field microphone
Phantom power 48 VDC
Frequency range 20 Hz – 20 kHz
Calibration certificate included
Detachable Cable
Gallery
Configurations
Configurations Measurement Microphones

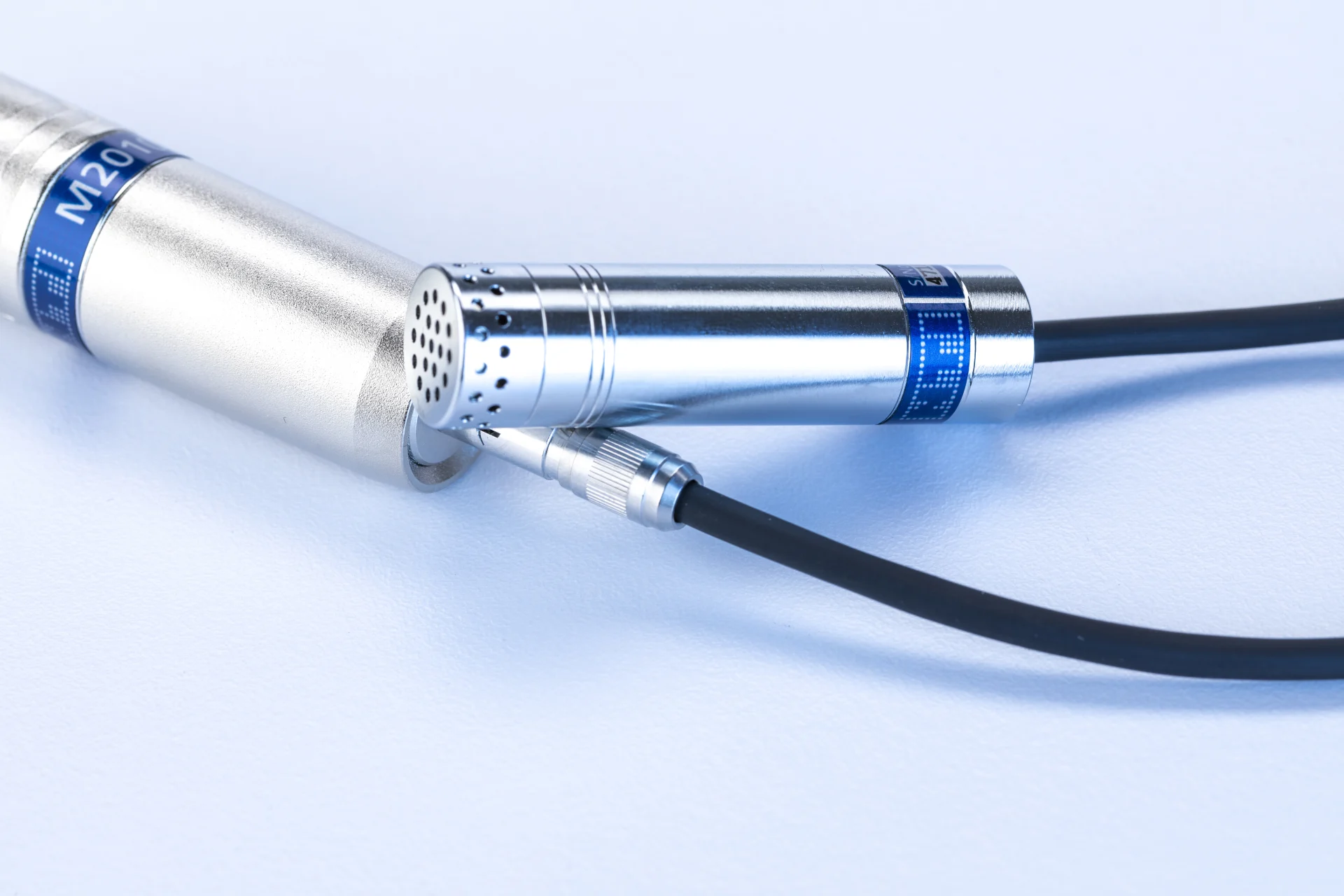

M2010
Measurement Microphone with class 1 frequency response and metal diaphragm.
M2015
Measurement Microphone for high acoustic levels (155 dB) with class 1 frequency response and metal diaphragm.
Accessoires
Manufacturer Calibration Certificate
The calibration certificate lists the individual product data with serial number. The calibration and adjustment procedures follow the documentation and…
