The Sound Insulation Reporter is a PC-based software application that provides all the standard reports for Airborne, Impact and Facade sound insulation measurements. Designed for acoustic consultants, this comprehensive tool uses data gathered by the Acoustic Analyzer, and quickly returns graphical analysis for all measurement positions.
Airborne, impact and facade sound insulation
Standardized Reporting
Parallel measurements in sending and receiving room
Overview
The Sound Insulation Reporter software offers remote measurements; two or more Sound Level
Meters may be controlled directly by the software connected via USB or wireless. This enables
parallel measurements of sending and receiving room onsite, thus a great time saving.
The Sound Insulation Option enables the import of measurement data into the Sound Insulation Reporter software.
Utilizing the remote sound insulation measurement functionality requires an activated Remote Measurement Option
on the connected device.
Features of the Sound Insulation Reporter software:
Airborne Sound Insulation
Impact Sound Insulation
Facade Sound Insulation
Visualization of all measurement
Customized Reporting
Standards ASTM E336, ASTM E413, ASTM E1007, ASTM E989, ASTM E966, ASTM E1332, BB93, DIN 4109, Document E, GB/T 19889, ISO 16283, ISO 140, ISO 717, ISO 10140, NEN 5077:2019, SIA 181:2006, SIA 181:2020
Videos
Introduction to the Sound Insulation Reporter
Automated Live Measurement with the Sound Insulation Reporter
Multi-Views

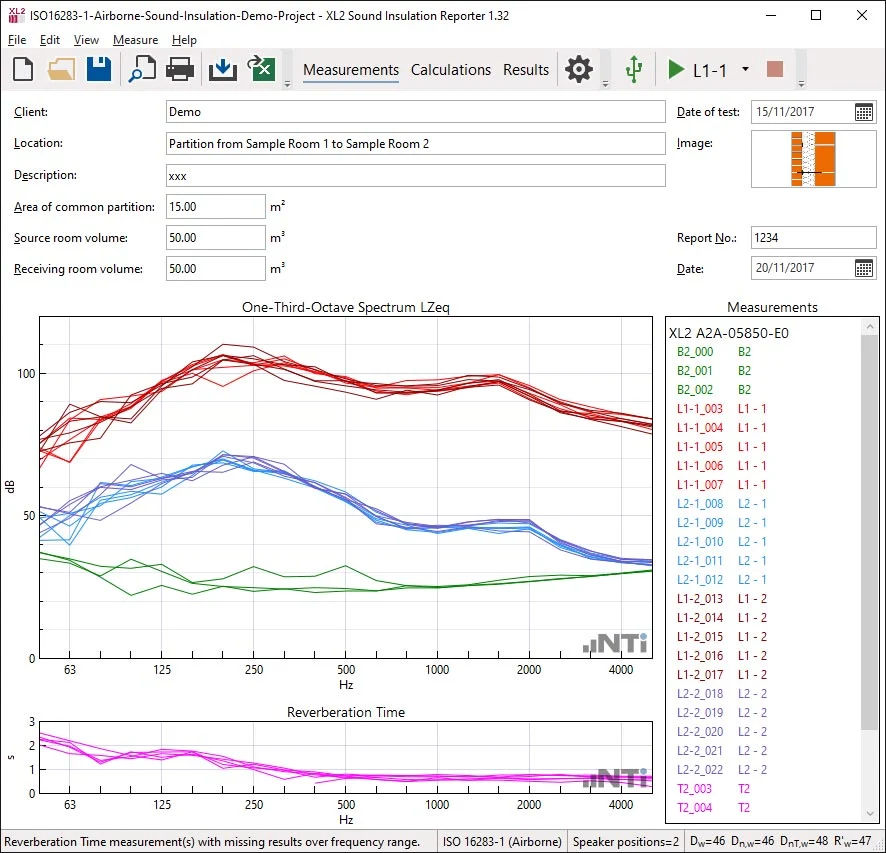

Measurements View
Drag & drop the measurement data into the software or perform remote-controlled measurements by connecting one or more Sound Level Meters via USB, LAN or wireless. All measurement data is automatically assigned to the corresponding sending or receiving room, as well as the speaker position for the sound insulation calculation.

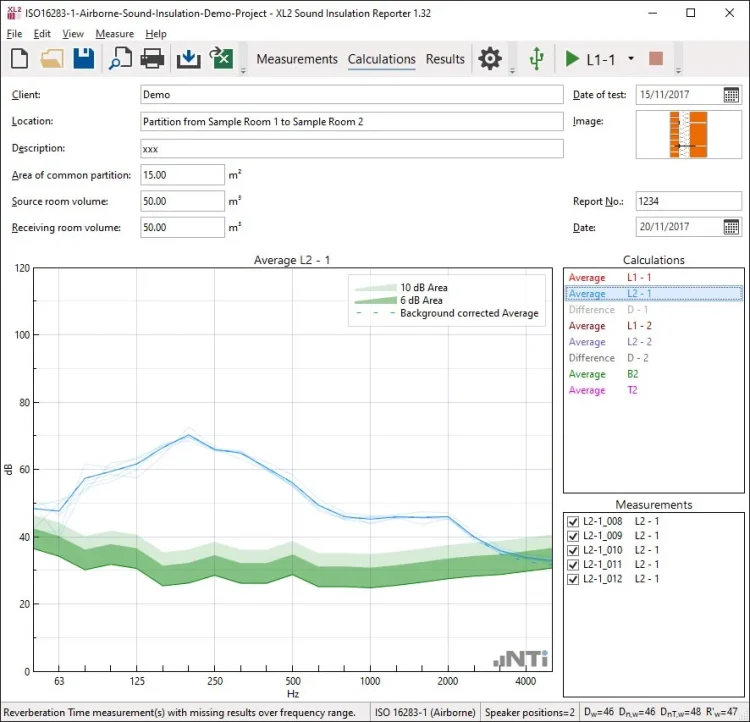

Calculations View
Evaluate the individual data sets for each room and speaker position. The colored background noise correction areas provide the important information at a glance.

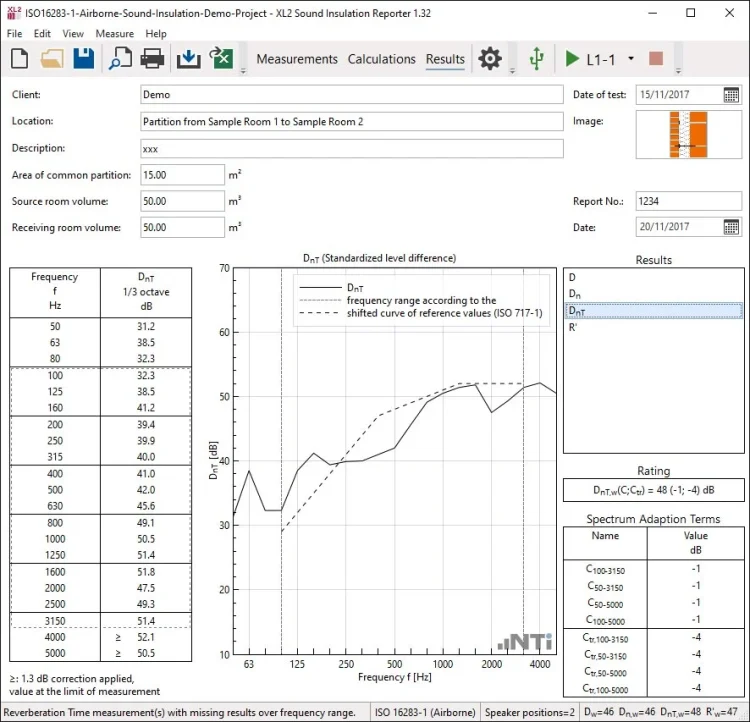

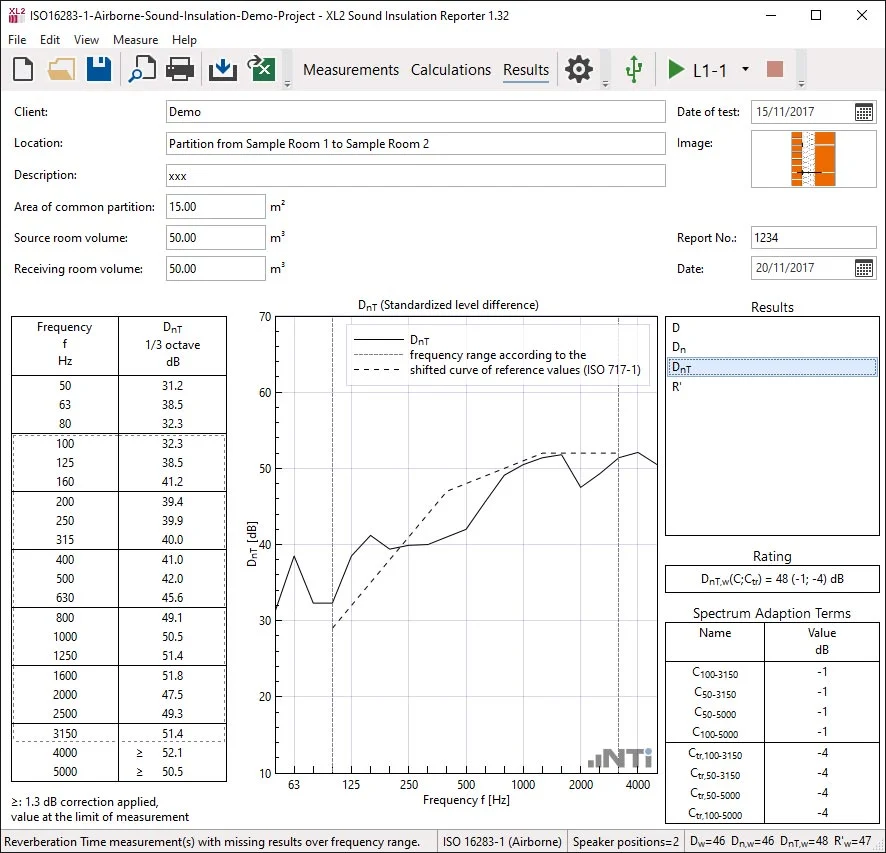

Results View
The results view displays the calculated sound insulation in a table and the standardized chart from 50 Hz to 5 kHz. The single number rating and the spectrum corrections are shown as applicable.
Evaluate Sound Insulation Reporter now
Feel free to test the Sound Insulation Reporter software with demo data.Sound Insulation Reporter is a free-to-use PC software. The data import from the Sound Level Meter is chargeable.
System requirements: PC with Windows XP, Vista, 7, 8.x, 10, 11
The purchase of a Sound Insulation Reporter 365 subscription allows the unlimited import of measurement data from one instrument into the Sound Insulation Reporter PC-Software for a period of one year. Data which has been recorded prior the subscription may then also be imported. Alternatively, a permanent license is available for each instrument.
Installation on multiple PCs
The Sound Insulation Reporter software can be installed on multiple computers. This provides consultants with the freedom to distribute their measurement projects among team members and clients.
Technical Requirements
The full software functionality is enabled by having one of the following options installed on the instrument:
XL2 Extended Acoustic Pack
XL2 Remote Measurement
XL3 Sound Insulation
Configurations
Sound Insulation Reporter 365
annual subscription service
Sound Insulation Reporter 365 Company
annual company subscription service for 3 or more instruments
Sound Insulation Reporter Permanent
permanently activated license for one instrument
