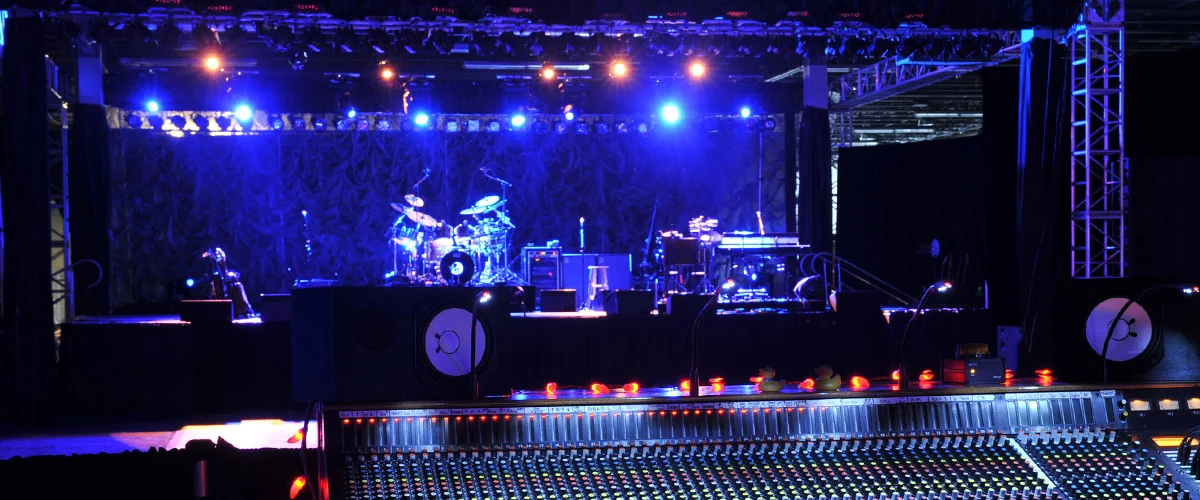

Test Solution for Front of House

Live Sound Solutions

Set up Live Rigs and optimize the frequency response with the XL2 Analyzer. The reference memory allows you to match the sound of both the left and right speaker arrays, as well as the monitors. Confirm that all speakers have the same polarity. Measure delay line time settings, and improve the total listening experience in the audience area.

At a glance

  • Level alignment
  • Setup and Troubleshooting
  • Verify phantom power and signal balance

Overview

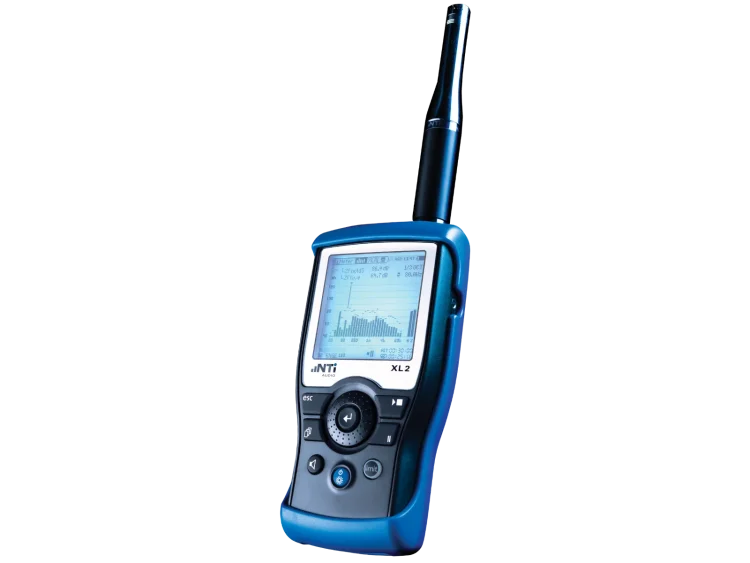

XL2 with M4260 Measurement Microphone
XL2 Audio and Acoustic Analyzer

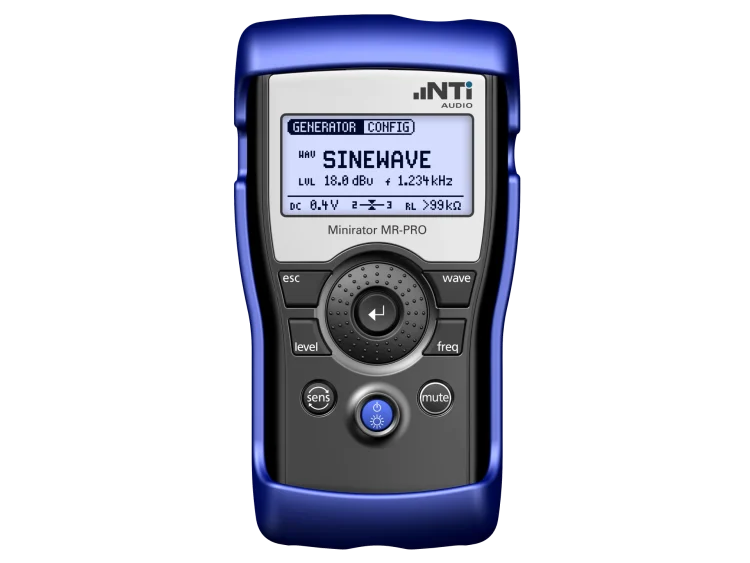

Minirator MR-PRO
Minirator MR-PRO

Help, I’ve got Hum!

The MR-PRO signal generator and XL2 Audio Analyzer are valuable instruments for fast troubleshooting of the audio signal path throughout the live system. Start by using the MR-PRO to verify the phantom power supply for microphones. Then to quickly find faults in cables and devices, send a balanced signal with the MR-PRO and measure balance, level and signal-to-noise ratio with the XL2. Additionally you can listen to the audio line with the XL2 internal speaker for a quick audible verification.

"Test 1, 2"

Test your system with the MR-PRO signal generator and XL2 Analyzer before the sound check starts. Set up PA systems and optimize the frequency response with the XL2 Analyzer. The reference memory allows you to match the sound of both the left and right speaker arrays, as well as the monitors.

Measure delay line time settings, and improve the total listening experience in the audience area. The XL2 Analyzer identifies any potential feedback frequencies. Also check any input channel with dynamic speech and instrument sounds provided directly by the MR-PRO, or use the sound signals to setup your reverb and delay effects processors.

As tough as your Roadie

The robust housing and soft shell are tailored for rough live sound environments. The combined battery and mains power operation ensures that your XL2 and MR-PRO are always ready to use – anywhere in the venue.

Too Loud?

Impossible! The XL2 Analyzer helps you comply with sound limit regulations. Simply power up the XL2 sound level meter, select the pre-configured measurement profile and press start. The tricolor Limit LED gives you the green light when you are within the prescribed limit. Load the logged data into a report template and play the XL2 audio file to review any periods when the sound was over the limit, but beyond your control, such as when the audience applause was too loud.

"This guy makes us sound good"

Use the XL2 Analyzer to set up PA systems and monitors. Generate pink noise with the MR-PRO signal generator and optimize the frequency response of your system with the XL2 Analyzer.

Downloads

Configuration

XL2 Kit for Front of House

XL2 Kit for Front of House

including
  • XL2 Analyzer
  • M4261 Measurement Microphone
  • Minirator MR-PRO
  • ASD Cable
  • Cable Test Plug
  • Mains Power Adapters
  • Exel System Case
