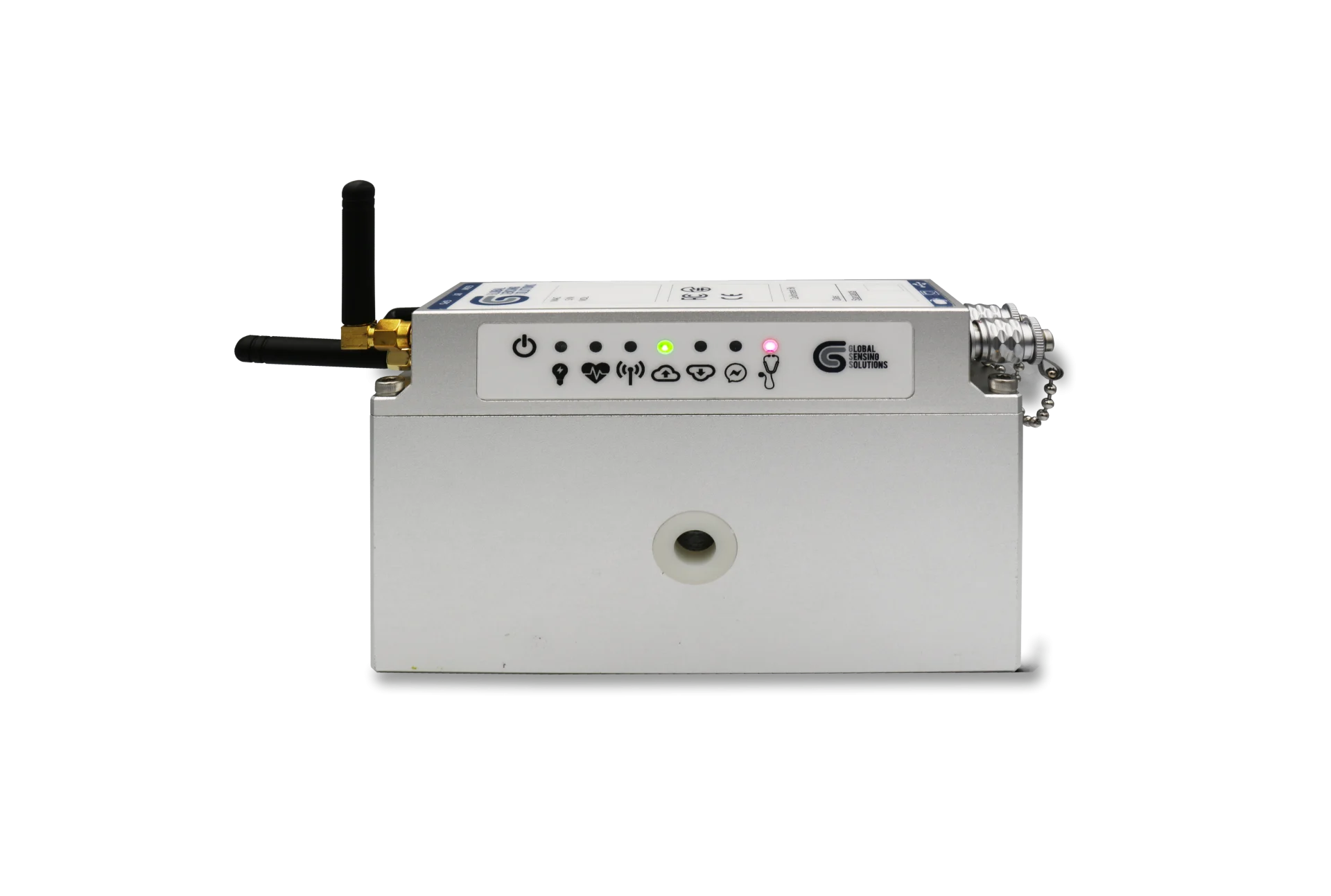

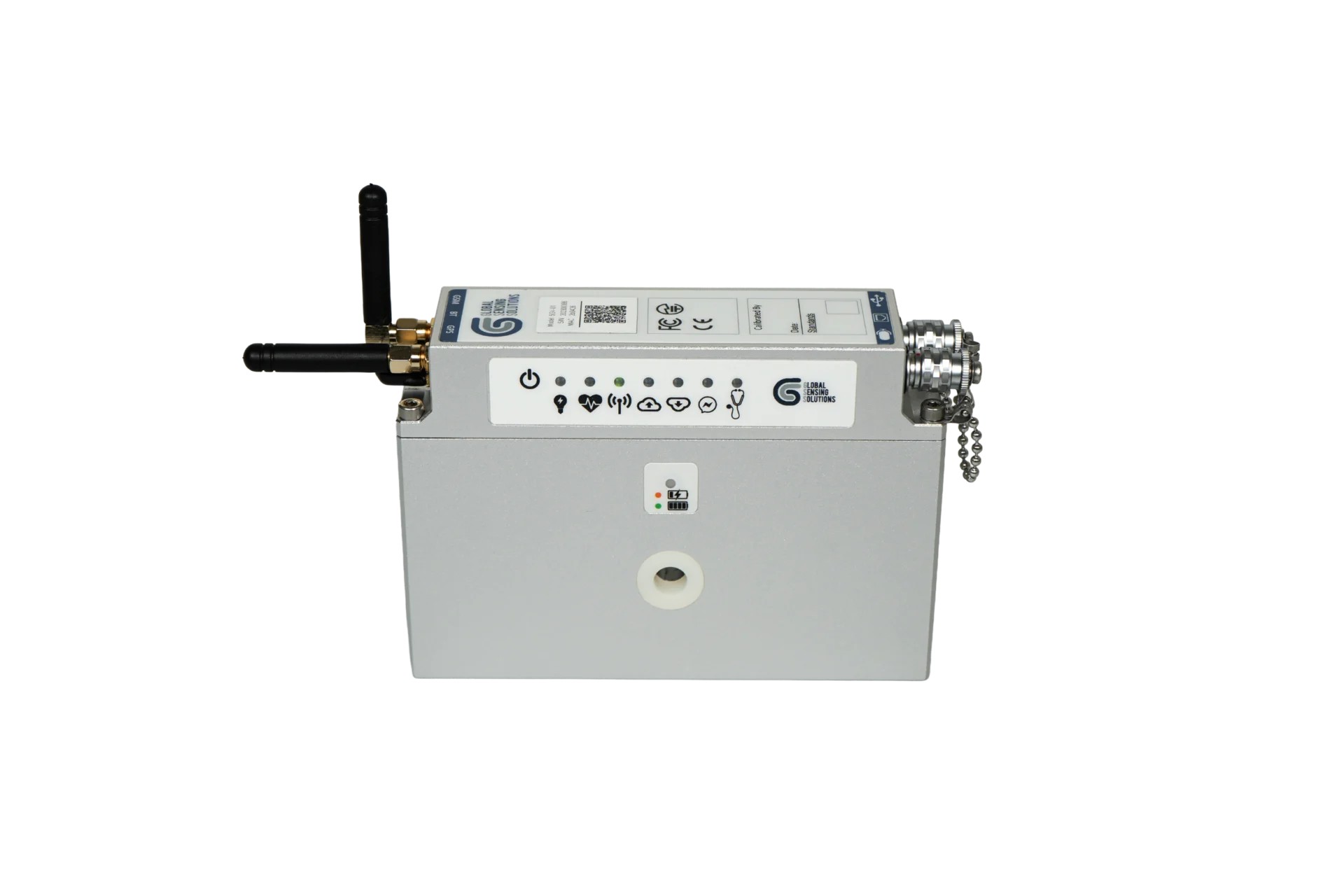

The GSS 5GV is a three-axis MEMS vibration and tilt monitor built for structural damage assessment, occupant comfort monitoring, and sensitive-equipment protection – all in one device. It combines an integrated 3G/4G gateway (Wi-Fi optional) with a rechargeable battery base, so it collects, processes, and transmits vibration data continuously without frequent site visits. Configure, install, and manage it remotely, with low-power operation designed to keep maintenance to a minimum.
Autonomous. Connected. Reliable.
Three-axis vibration and tilt monitor
Rechargeable battery base – no more one-time cells to replace
Auto-orientation (Z-axis follows gravity)
On-site gravity self-check – no calibrator or disassembly required
MQTT and FTP connectivity for flexible backend integration
DIN 45669-1 Class 1 precision
At a glance
Structural health monitoring – construction sites, buildings, tunnels, bridges, blast zones, and remote foundations
Occupant comfort assessment – keep vibration within the limits defined by international human-comfort and safety standards
Sensitive equipment protection – safeguard precision machinery, medical devices, and lab equipment from vibration-induced damage
Real-time data in MeasurEye – NTi’s cloud platform for live dashboards, event alerts, and automated reports
Rechargeable battery base extends field autonomy and cuts site visits
The 5GV integrated gateway gives you full control over how your data is collected, named, formatted, and transferred – with flexible connectivity, remote configuration options, and power-efficient operation designed for long-term monitoring.
Installation & setup
Magnet-and-lanyard on/off operation. no need to open the housing to power up on site
Auto-orientation on install — Z-axis automatically follows gravity, with on-site verification via a simple gravity check
Autonomous gravity-based self-check. Verifies sensor accuracy on-site, without disassembly or an external calibrator

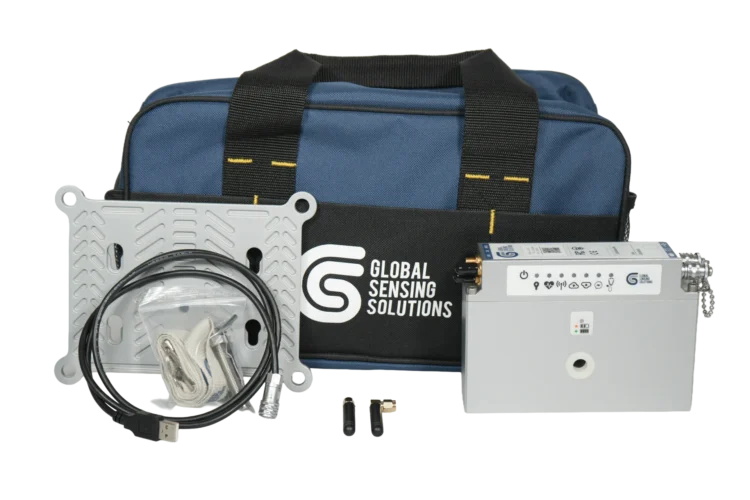

Mounting bracket kit included for fast, secure installation on structures
IP67-rated housing for harsh outdoor and construction environments
Remote & local management
Remotely configured via MeasurEye, SMS, MQTT, or FTP
Full integration with MeasurEye for end-to-end configuration and monitoring
Local setup via Android app over Bluetooth
PC console software (via USB) for on-site configuration and post-processing
Connectivity & communication options
Integrated 3G/4G/LTE communication module for essential connectivity
Optional Wi-Fi module accessory for Wi-Fi-enabled installations
Alerts, reporting & battery performance
Real-time event alerts via MeasurEye, MQTT, SMS, or email
Adjustable PPV/DF reporting interval: 30 seconds to 1 hour
Live data visualization and historical trends in MeasurEye
Automated PDF reports (daily/weekly/monthly) for structural health monitoring and occupant comfort assessment
Battery life: up to 6 months in low-power mode
Rechargeable battery base extends field autonomy and cuts site visits
Data export & transfer control
MQTT for real-time integration with MeasurEye or your own platform
FTP push for standalone operation and backup — measurement data (structural health monitoring, occupant comfort assessment, and sensitive equipment protection), alert waveforms, and event logs, independent of any cloud subscription
The 5GV is a high-performance, versatile vibration and tilt monitoring sensor built to withstand harsh environments and meet the most demanding accuracy requirements. With quick installation, remote management, long battery life, and user-defined alert thresholds, the 5GV is designed to reduce the number of visits to the site.
ALL IN ONE
✓ Bluetooth and 4G-LTE connectivity (Wi-Fi optional)
✓ Rechargeable battery base
✓Low-power mode, up to 6 months of autonomy
✓IP67 · compact 152 × 98 × 41 mm · 1.15 kg
Complying with Standards
One instrument for every application — structural damage, occupant comfort, and sensitive equipment, all backed by 10+ international standards.
✓Conformance with DIN 45669-1 (Class 1), ISO 2631, ISO 8041, and ISEEl)
Structural Health Monitoring
Peak Particle Velocity & dominant frequency (Zero Crossing or FFT)
Tilt measurement: Pitch +90° & Roll ±90°
Frequency filters for DIN 4150-3, BS 7385, ISEE, AS 2817-2, ÖNORM S 9012, and 10+ international standards
Threshold alerts and historical trend readings
Occupant Comfort Assessment
Vibration Dose Values (VDV) according to BS 6472
Frequency-weighted acceleration (AWt) according to ISO 2631
KB-value (KBFT) according to DIN 4150-2
1/3-octave spectrum (velocity, acceleration, and dBV)
Threshold alerts and historical trend readings
Sensitive Equipment Protection
VC curves up to VC-C
Precision monitoring for laboratories, hospitals, and manufacturing facilities
Real-time threshold alerts
