XL2 Audio and Acoustic Analyzer

XL2 Sound Level Meter

Switch on. Measure. Analyze.

  • Sound Level Meter
  • Spectrum Analyzer
  • STIPA Analyzer
  • Audio Analyzer
  • Vibration Meter


Functions Options Software Applications Accessories Specifications

The hand-held XL2 Analyzer is a powerful Sound Level Meter, a professional Acoustic Analyzer, a precision Audio Analyzer and a comprehensive Vibration Meter in one instrument. Easy operation and countless applications distinguish this quality Swiss product.

The XL2 Sound Level Meter is available in stock, allowing for expedited delivery.

At a glance

  • Reliable measurement solution
  • Flexible user interface
  • Extensive range of measurement functions

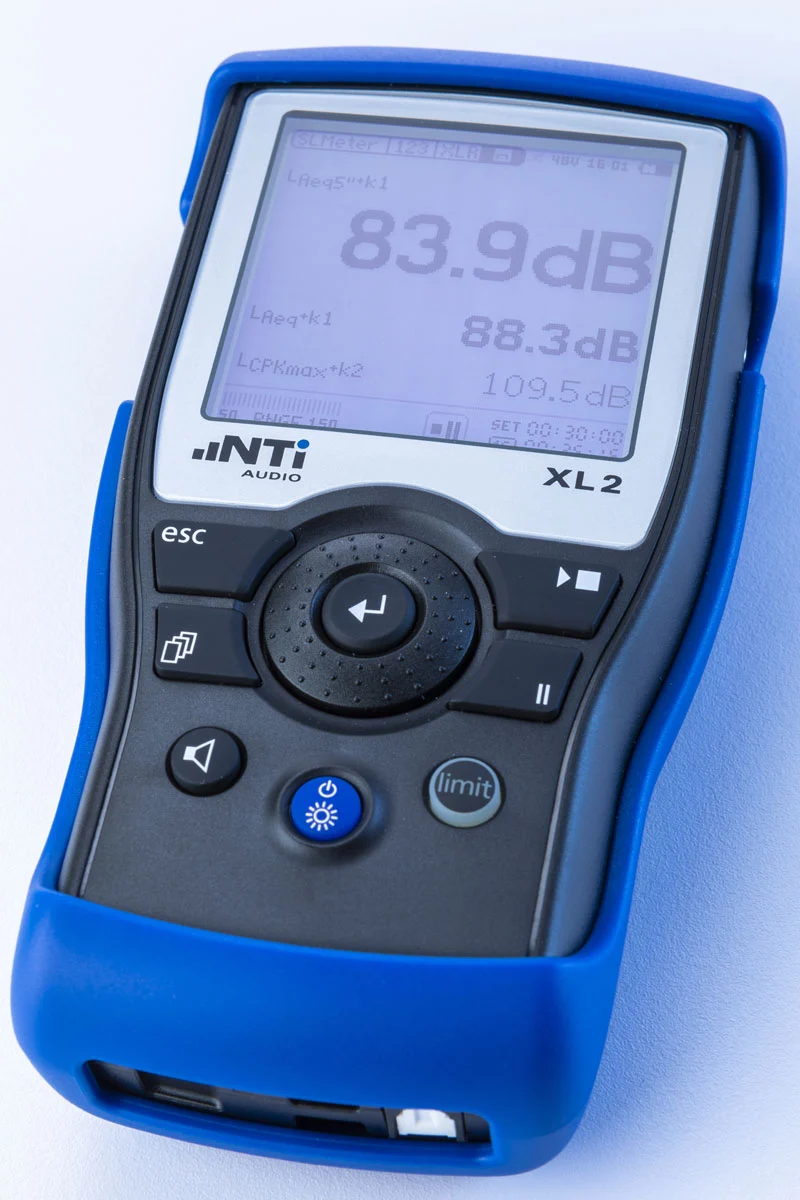

The XL2 as a Sound Level Meter

Numerous measurement variations are simultaneously available. Actual level (live), Lmin, Lmax, Leq and Lpeak may be measured in combination with frequency weighting A, C or Z and time weightings fast, slow and impulse. All results are simultaneously available and may be stored automatically for later documentation.

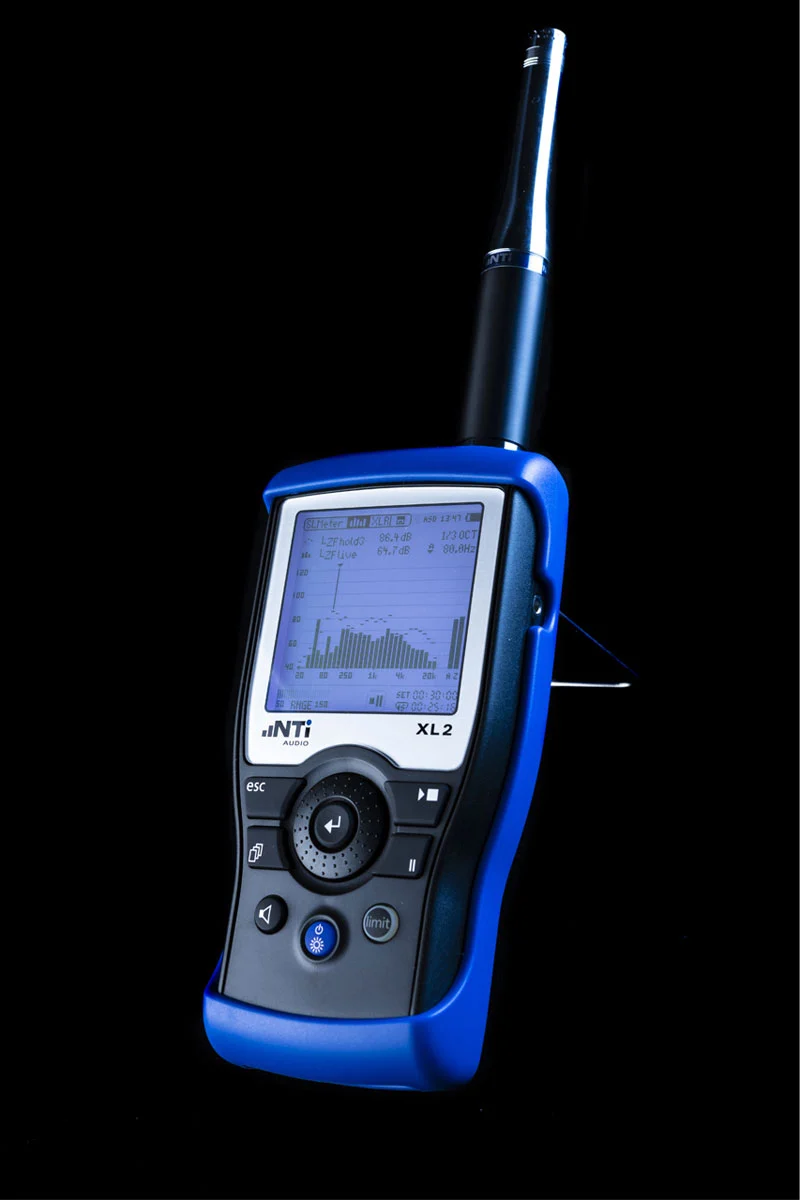

XL2 Sound Level Meter


Customers may log all acquired level information onto a removable SD card. Additionally the XL2 offers wav-file recording for a complete documentation of the measured sound pressure levels. Voice notes may also be added to each measurement.



Sound Level Meter Features

Standards
  • IEC 61672, IEC 60651, IEC 60804, IEC 61260
  • China: GB/T 3785:2010, GB/T 3241, GB 3096-2008, GB 50526, GB-T_4959-1995
  • Germany: DIN 15905-5, DIN 45645-2, optional: DIN 45645-1
  • Japan: JIS C1509-1:2005, JIS C 1513 class 1, JIS C 1514 class 0
  • Switzerland: SLV
  • UK: BS6698, BS5969
  • US: ANSI S1.4:2014, ANSI S1.43, ANSI S1.11:2014
  • SMPTE ST 202:2010, ISO 2969:2015



Sound levels
  • SPL actual, Lmin, Lmax, Lpeak, Leq, gliding Leq
  • Frequency weighting: A, C, Z (=flat) simultaneously
  • Time weighting: Fast, slow and optional impulse simultaneously
  • Correction values k1, k2
  • Indicators show when sound level limits are exceeded
  • Digital I/O interface for the control of external peripherals
  • Sound Exposure Level LAE (optional)
  • Percentile statistics for Lxy (x= A, C or Z, y= F, S or EQ1"): 1 - 99% (optional)
  • Calculated levels: LCeq - LAeq, LAIeq - LAeq, LAFT5eq -LAeq (optional)
  • Clock-impulse maximum level "TaktMax" in accordance with DIN 45645-1 (optional)



Logging and Reporting
  • All levels simultaneously
  • Short-time levels including spectrum for 1 second or longer
  • Wav-file for listening (compressed)
  • Data logging in 100 ms intervals (optional)
  • Linear wav-files with 24 bit, 48 kHz resolution (optional)



Remote measurement
  • Remote measurement acquisition (optional)

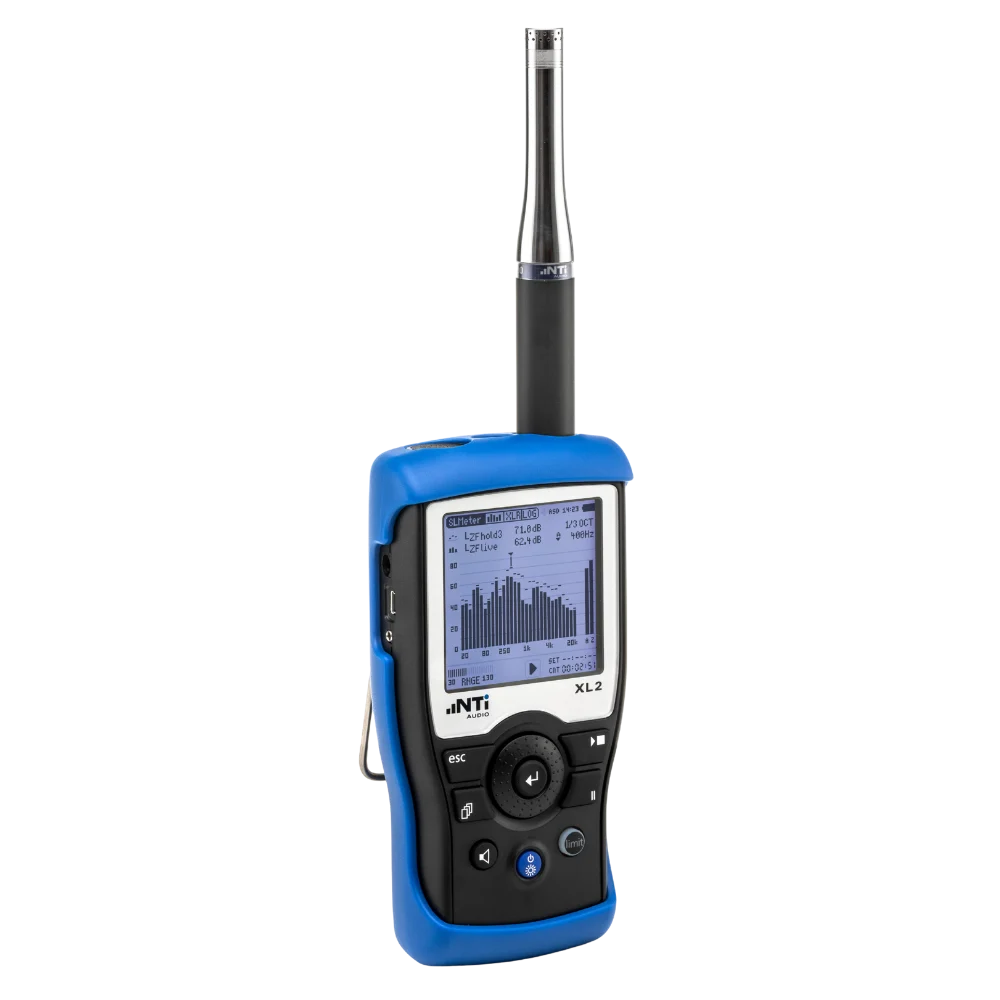

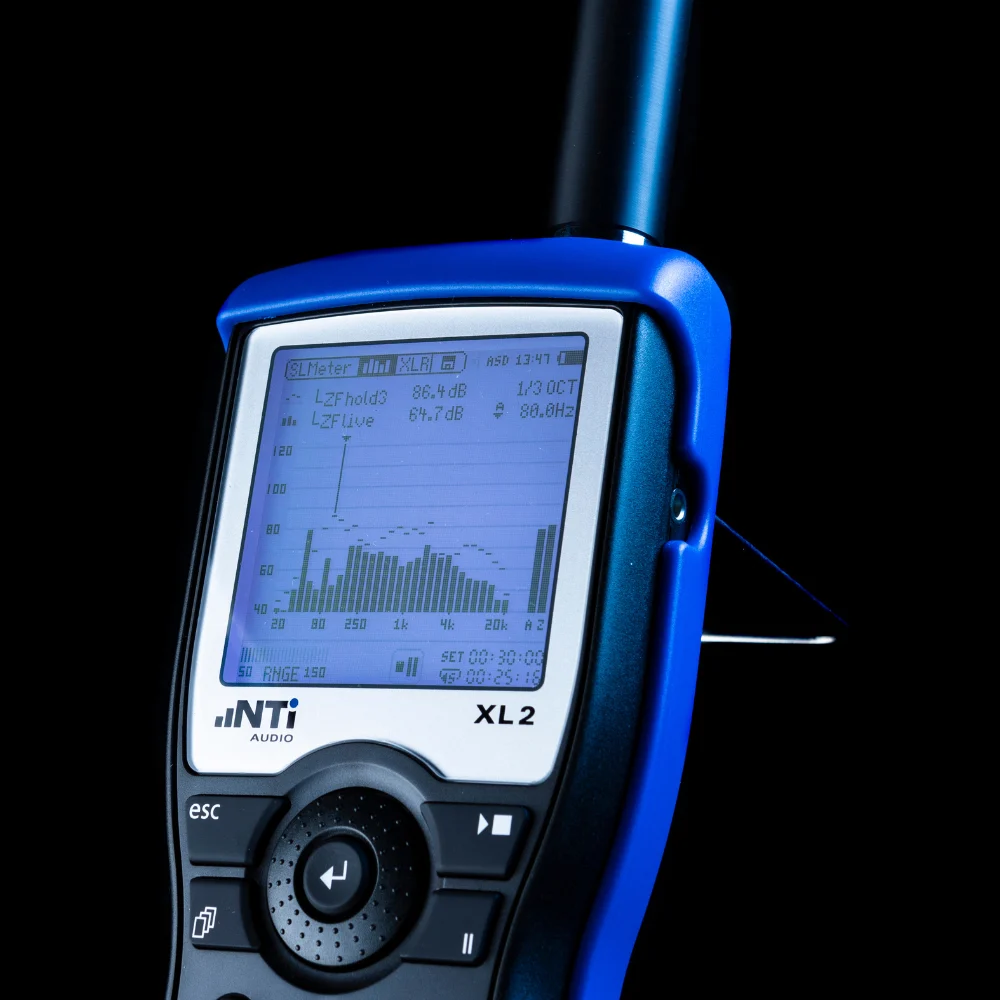

The XL2 as a Real Time Analyzer RTA

The RTA perfectly suits tasks such as optimization of sound systems and rooms. The XL2 measures and logs wideband values and the real time spectrum in 1/1 or 1/3 octave-band resolution according to IEC 61260 class 0. The sound level meter results of the wideband and RTA spectrum are simultaneously available.

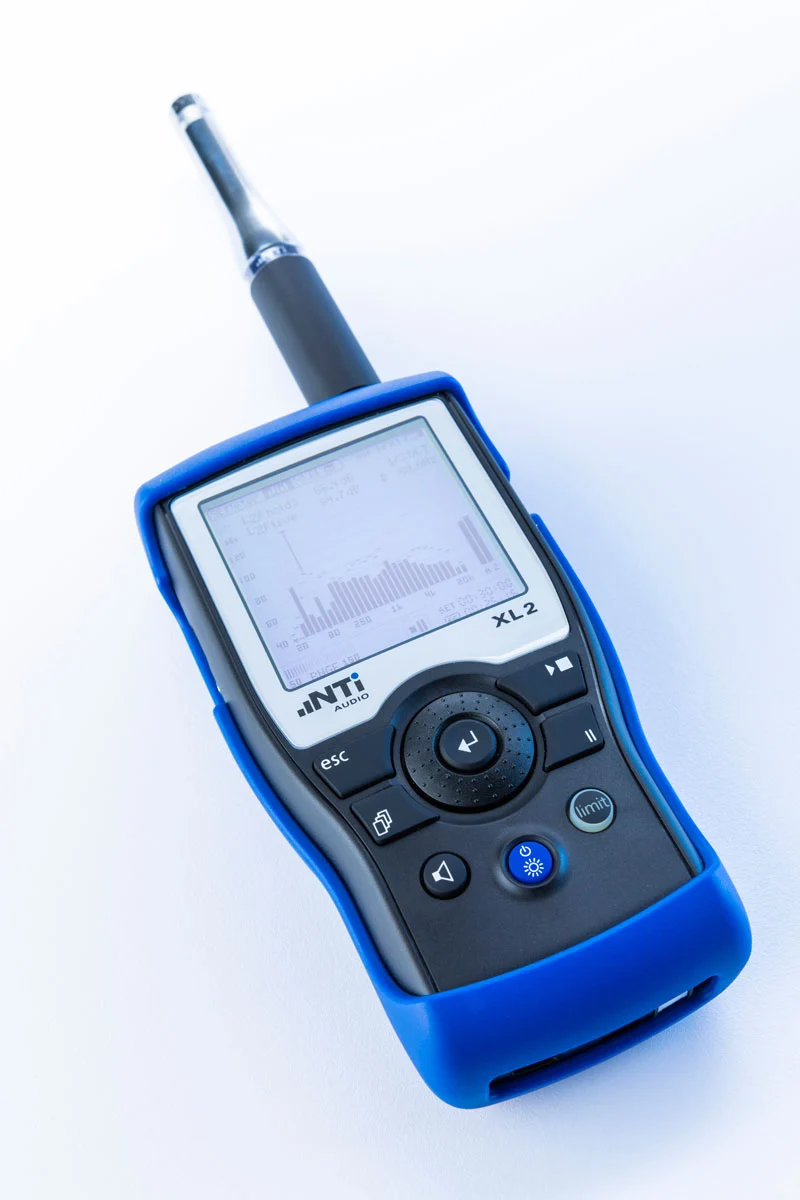

XL2 Sound Level Meter

Real Time Analyzer Features

  • 1/3 octave, 1/1 octave
  • Frequency weighting: A, C, Z (=flat)
  • Time weighting: Fast, slow and optional impulse
  • Percentile statistics for Lxy (x= A, C or Z, y= F or S ): 1 - 99% (optional)

The XL2 as an Audio and Acoustic Analyzer

XL2 Performance & Functional Overview

Switch on - Good to go

Get the job done, on time! The instrument is ready to measure literally seconds after you press the power button. The intuitive navigation and flexible user interface assist in simplifying every task. The XL2 provides an extensive range of measurement functions.

Show all Functions

Ready for any Challenge

The XL2 is developed according to user needs, and provides reliable measurement solutions for sound system installations, noise control, architectural acoustics, evacuation systems, live events, quality inspection and occupational health and safety. Discover an instrument you can trust for specialist applications.

Go to Applications

Options

Extend your XL2 with more features to meet your needs.

See all Options

Accessories

A wide range of accessories is available tailored for your applications.

See all Accessories

5 reasons why the XL2 is the right choice for you

The XL2 Acoustic Analyzer offers numerous measurement functions relevant to your application in one instrument. Thanks to the intuitive operation, you can quickly and easily switch between the different measuring functions.

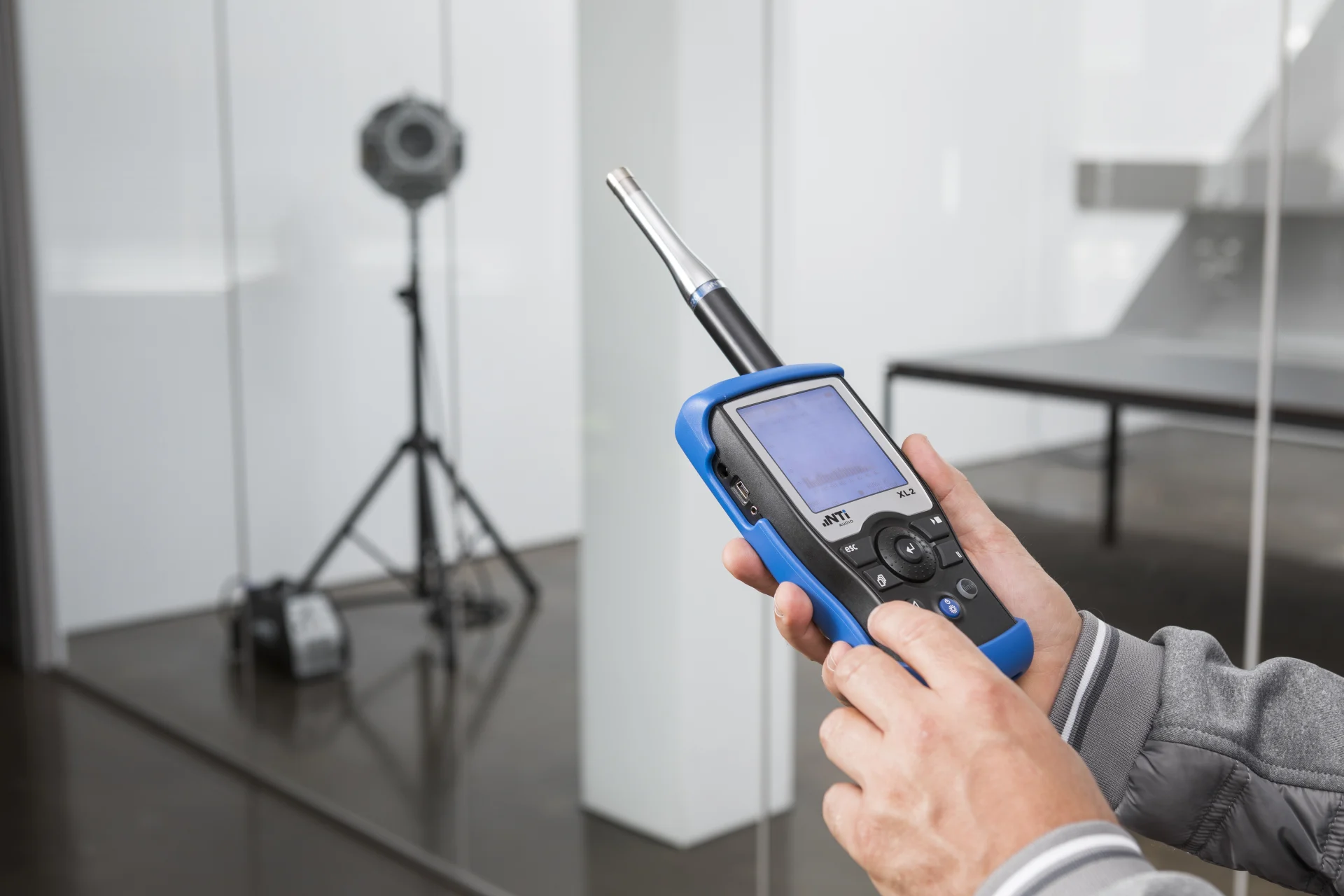

XL2 Acoustic Analyzer for Building Acoustics Measurements
XL2 Acoustic Analyzer for your Application

  • the intuitive user interface makes operation child's play without having to study the user manual.

  • rugged and ready for tough environments.

  • all measurement results are stored on a removable SD card as TXT files, which can be further processed externally with a PC or MAC.

  • the XL2 has many expandable measurement functions. So, if you have other acoustic or audio measurement tasks, it's likely that the XL2 can help you.

  • Together with the Type Approval Option, the XL2 is an approved Sound Level Meter.


Incomparable Value

The XL2 Audio and Acoustic Analyzer provides top-class performance with excellent value for money. You will receive an instrument exactly tailored to your needs for less than you expect.


Data Analysis and Reporting

The XL2 stores all data onto the SD card for direct transfer to the computer. Data reports and log files are stored in plain text format, which can be opened with any text editor (Notepad, Wordpad, etc). The data is tab-delimited, so dropping the .txt file into a spreadsheet application will conveniently show the results in columns. The sound level meter may additionaly record the audio data as a WAV-file .

A series of free MS Excel application templates provide a convenient way to view the measurement results of specific tasks and create simple reports.

Free Reporting Tools:

  • Basic Live Sound and Noise Monitoring Reporting
  • Noise Exposure
  • Speech Intelligibility Reporting

Download here


Professional Software Packages (optional):

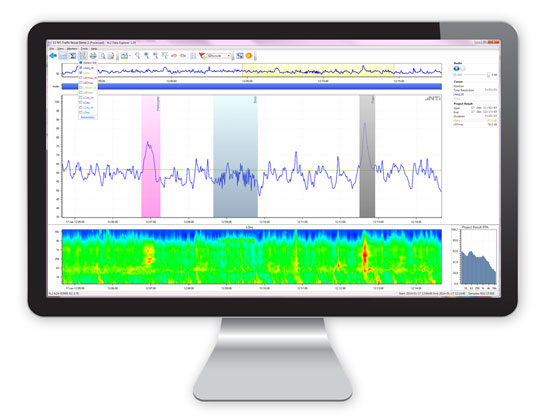

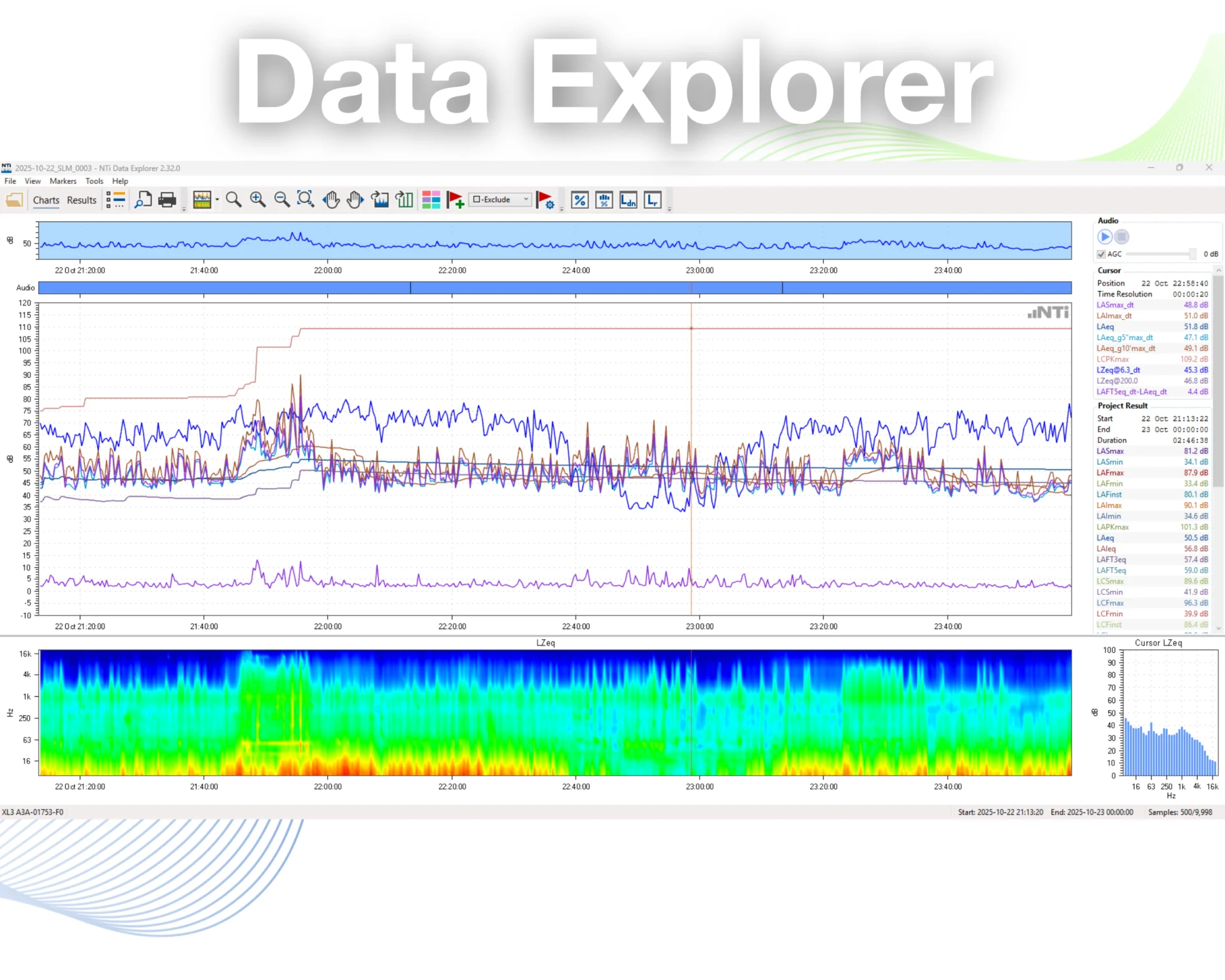

XL2 Data Explorer

  • Data Explorer

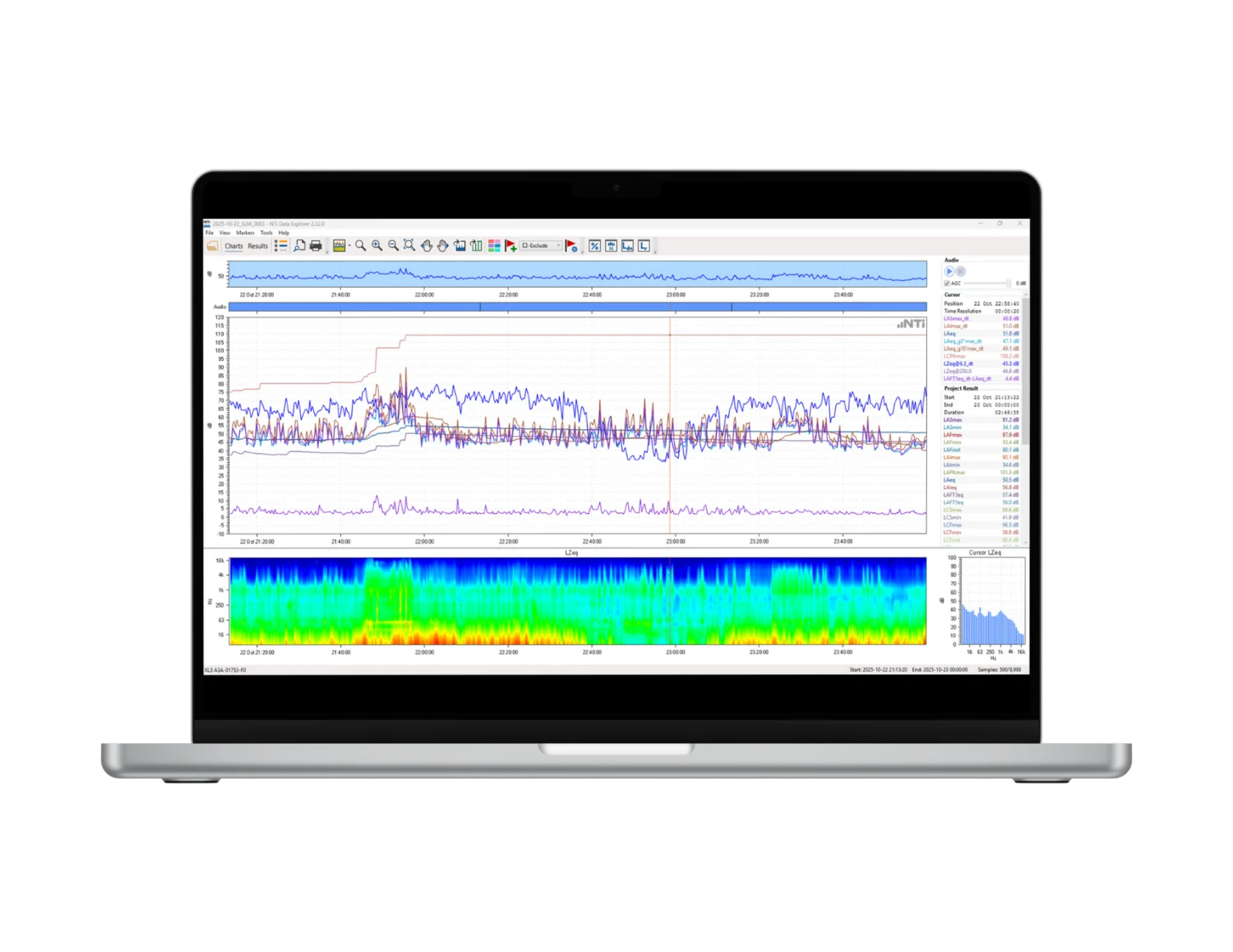

    Professional solution for a comprehensive analysis of logged noise monitoring data. The data import into the software is enabled by the Data Explorer Option or the annual subscription service Data Explorer 365.

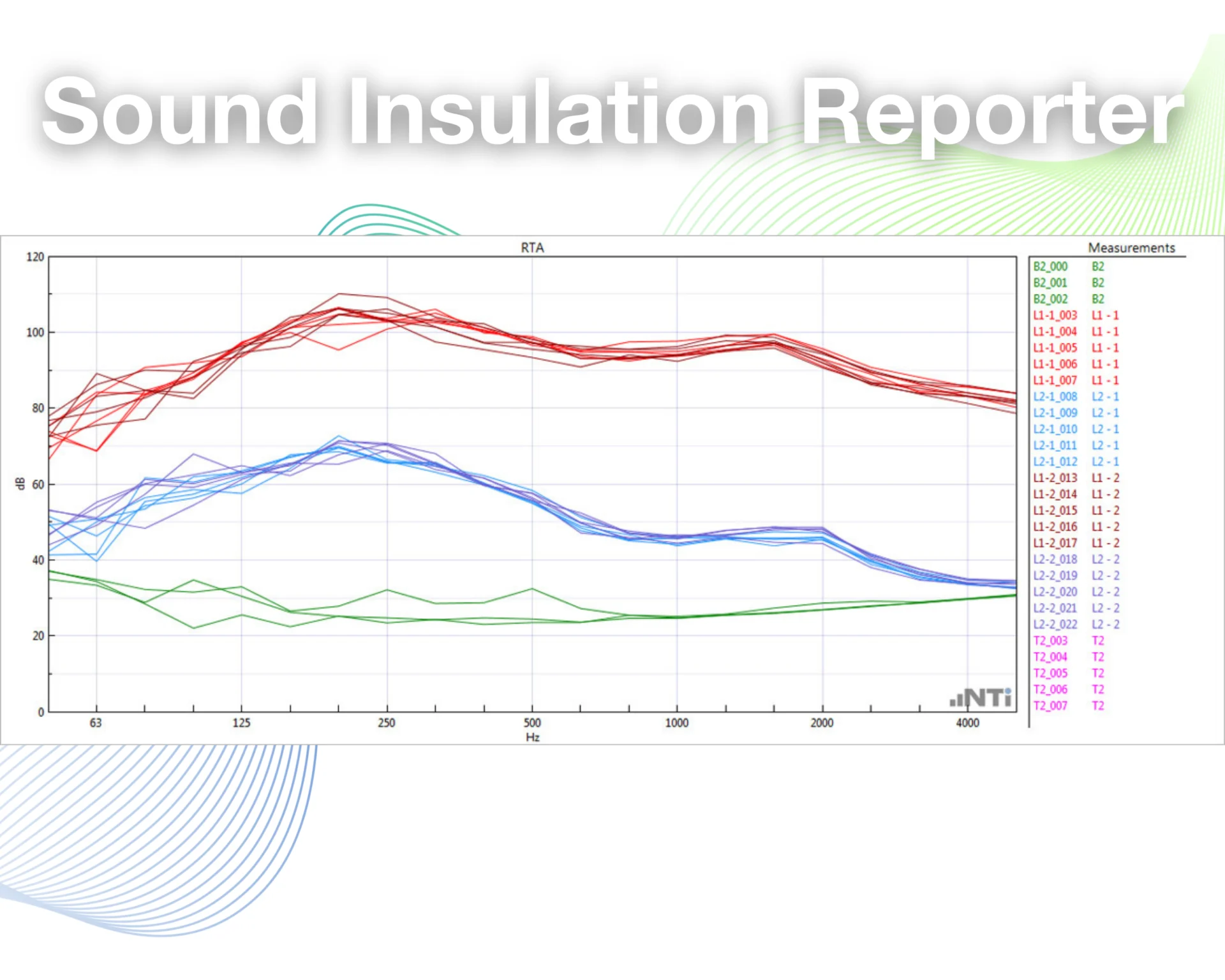

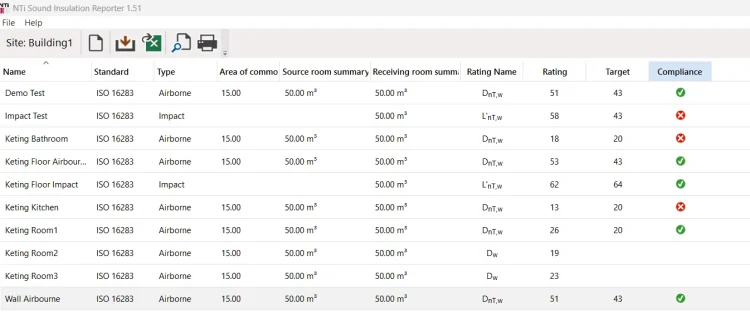

  • Sound Insulation Reporter
    Provides standardized reports for Airborne, Impact and Facade sound insulation measurements. The data import into the software is enabled by the Sound Insulation Option or the annual subscription service Sound Insulation Reporter 365.
  • Sound Power Reporter
    Provides standardized reports for sound power measurements. The data import into the software is enabled by the Sound Power Option or the annual subscription service Sound Power Reporter 365.

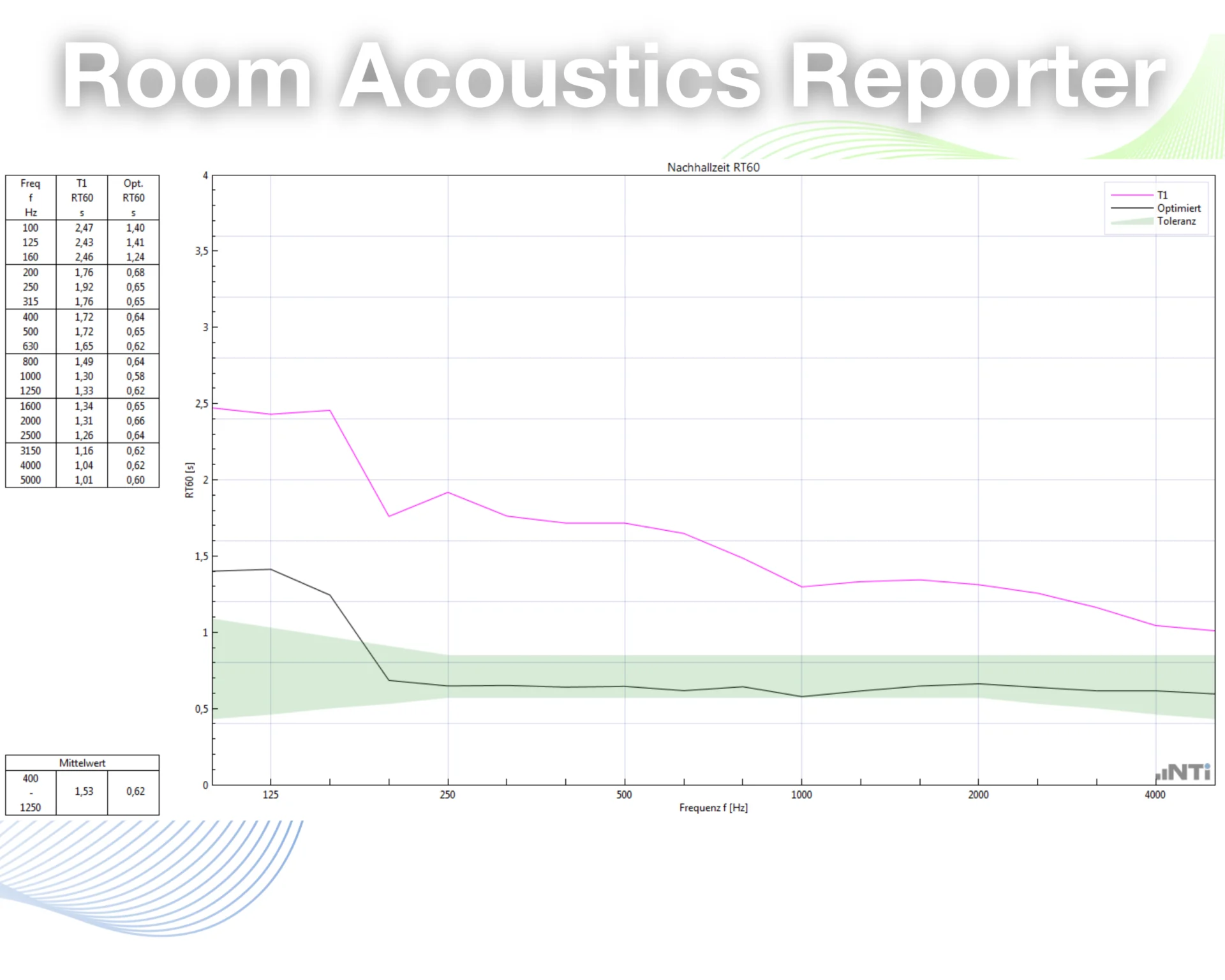

  • Room Acoustics Reporter
    For automatically generating reverberation time measurement reports and analyzing the RTA frequency response spectrum. The data import into the software is enabled by the Room Acoustics Option or the annual subscription service Room Acoustics Reporter 365.

Data Explorer Sound Insulation Reporter Sound Power Reporter Room Acoustics Reporter



I Love It! The XL2 is currently the world’s most versatile hand-held acoustic and audio analyser. I can do so much with it, and just love it! And in many ways, the associated Data Explorer software is much more versatile and easier to use than other leading industry equivalents.

Glenn Leembruggen
Acoustic Directions, Australia

Very Simple to Use! I must say that the instrument and the software are brilliant, and very simple to use, even for an old fogey like me.

Owen Clingan
owen.clingan@btinternet.com, UK

Better price with more versatility! I am happy that you keep on developing new applications and uses for the XL2, it is quite a convenient and powerful tool. In my opinion it is a serious competition for the traditional sound level meters at a better price and with more versatility. The Type Approval is an important step forward in the acceptation of the system; even in situations where type approval is not really needed, it helps avoiding discussions on the validity of the measurements.

Ben Kok
www.benkok.com, Netherlands

XL2 Data Explorer Software! With regards to analyzing the recorded noise data: The idea of hovering over the marker text or locking the set of them is absolutely brilliant for assessing the tonality of a marked section. I could not have thought of a better system. And the percentile calculator letting you choose any marker, filter band or level parameter is just perfect.

Jason Dixon
www.instrulabs.com.au, Australia

Your Partner in Measurements

Take advantage of our global network of experts. Any questions? Enjoy all-round customer support and training. We gladly share our application know-how and provide you with the key to your success. Welcome to the NTi Audio family!


Configurations

XL2 with M2230 Measurement Microphone

Sound Level Meter (Certified Class 1)

The XL2 together with the M2230 Measurement Microphone and the Type Approval Option forms a certified class 1 sound level meter in accordance with the standards IEC 61672-1 and ANSI S1.4.

Measurement Kit
  • XL2 Sound Level Meter
  • Type Approval Option for XL2
  • M2230 Measurement Microphone
  • Manufacturer Calibration Certificate according to IEC 61672
  • System Case
Optional
  • Extended Acoustic Pack for XL2
  • Data Explorer 365
  • Remote Measurement Option for XL2
  • Class 1 Sound Calibrator 94/114 dB

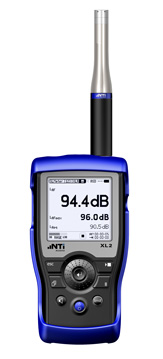

XL2 with M2210 Measurement Microphone

Sound Level Meter with Class 1 Frequency Response

The XL2, together with the M2211 Measurement Microphone, forms a professional sound level meter with class 1 frequency response according to IEC 61672-1 and ANSI S1.4.

Measurement Kit
  • XL2 Sound Level Meter
  • M2211 Measurement Microphone
  • Manufacturer Calibration Certificate according to IEC 61672
  • System Case
Optional
  • Extended Acoustic Pack for XL2
  • Data Explorer 365
  • Remote Measurement Option for XL2
  • Class 1 Sound Calibrator 94/114 dB

XL2 with M4260 Measurement Microphone

Sound Level Meter Class 2

The XL2, together with the M4261 Measurement Microphone, forms a professional sound level meter according to IEC 61672 and ANSI S1.4., class 2.

Measurement Kit
  • XL2 Sound Level Meter
  • M4261 Measurement Microphone
  • Manufacturer Calibration Certificate according to IEC 61672
  • System Case
Optional
  • Extended Acoustic Pack for XL2
  • Data Explorer 365
  • Remote Measurement Option for XL2
  • Class 2 Sound Calibrator

Get more Information

Contact us for a quotation or to discuss your measurement application.
