Basic Measurement Functions

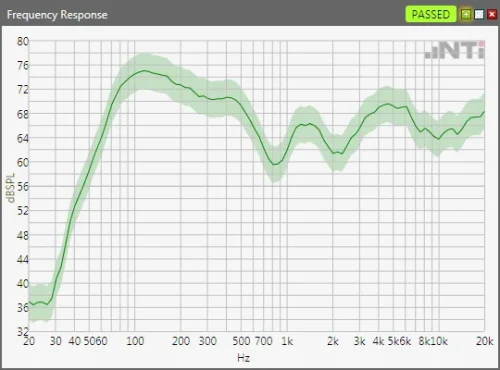

Level, Frequency and Gain
The FX100 measures selective and wideband levels in the frequency range from 5 Hz to 80 kHz. Simultaneously it measures individual frequencies and the gain of the test setup. These measurements are supported in the Meter, StepSweep and GlideSweep mode.

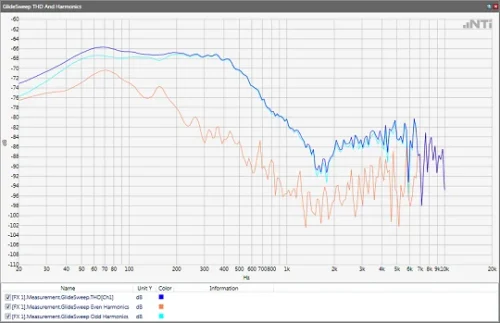

Distortion: THD, THD+N, Harmonics k2 - k35
The FX100 measures the Total Harmonic Distortion with/without Noise and individual harmonics k2 – k35. Any number of harmonics may be summed together and displayed as single result. These measurements are supported in the Meter, StepSweep and GlideSweep mode.

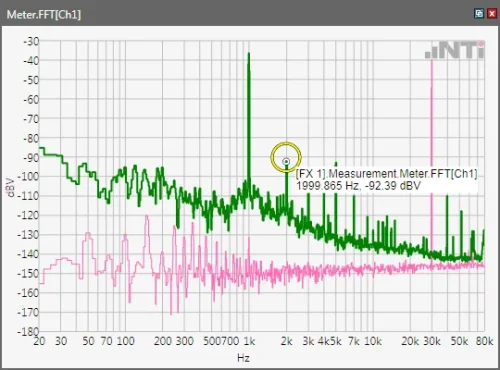

Fast Multi-Channel FFT
The high-resolution FFT (=Fast Fourier Transformation) with 192 kHz sampling rate presents a detailed analysis of the audio frequency spectrum. FFT graph panels may be customized showing one or more traces simultaneously.
Phase
The FX100 measures the interchannel phase relation in the Meter, StepSweep and GlideSweep mode.

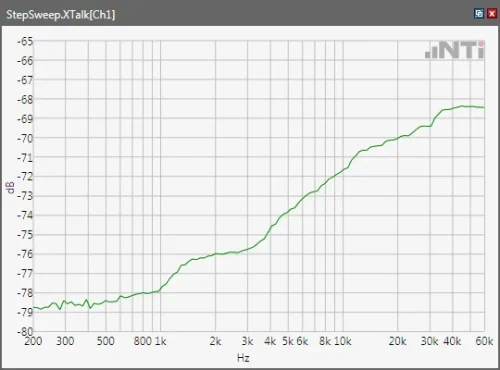

Crosstalk
The FX100 measures the interchannel crosstalk in the Meter and StepSweep mode.

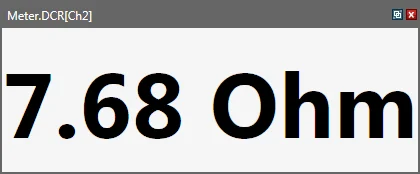

DC Measurements
The FX100 measures DC-Level and DC-Impedance in the Meter mode.
