The Vibration Meter is a multi-functional device designed for machine vibration measurement (cyclic condition monitoring and troubleshooting), production line quality control, as well as structural vibration assessment.

At a glance

  • Simultaneous display of Acceleration, Velocity and Displacement
  • Frequency range down to 0.7 Hz
  • Data and Waveform logging
  • Headphone Output

Vibration Meter / CPB

The Vibration Meter accurately measures acceleration, velocity and displacement simultaneously with a frequency range down to 0.7 Hz. The results are presented in metric, imperial or dB values with adjustable reference values. Various Filters as well as time weightings, including gliding RMS values for smooth readings, Peak and Peak-Peak readings are available, supporting a broad range of applications.

A CPB spectrum with 1/1 or 1/3 octave resolution is calculated simultaneously, covering a frequency range from 0.8 to 2.5kHz. An automatic cursor points to the dominating frequency. Spectra can be compared using a “capture” which holds a previous result while, at the same time, showing the spectrum of the current input signal.

The data logger supports recording of vibration measurements and CPB results in plain text format for easy import e.g. into MS Excel. The vibration signal can also be stored, along with measured data, as a linear or as a compressed wave file recording. All data is stored on the devices SD card, along with voice notes if required. The SD card offers plenty of space for long term vibration assessments.


XL2 Sound Level Meter;

FFT Analyzer

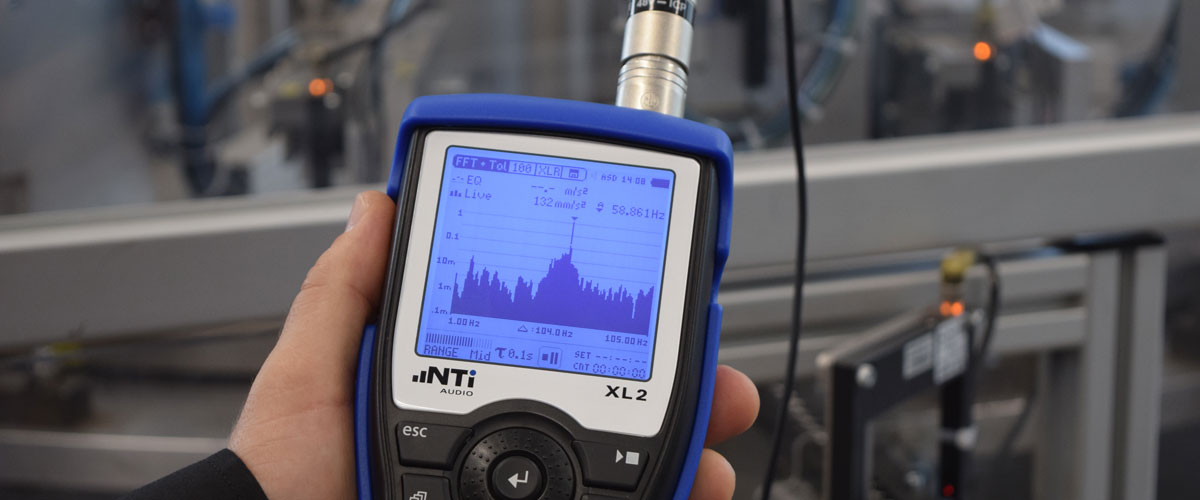

The FFT Analyzer helps to identify the various sources of vibration while also quantifying vibration levels . The analysis is conducted in real-time with at least 50% overlap, ensuring that no details are lost. To support the wide range of measurement applications, three frequency ranges are supported: 1 to 105 Hz, 5 to 421 Hz and 23 to 1.687 Hz with a resolution of 143 lines. In addition to exponential averaging with a selectable time constant, the FFT also calculates the linear average (EQ) for smoothed measurement results. Acceleration, velocity and displacement readings may also be selected.

The Spectral Limits Option extends the FFT Analysis with trace capturing, relative curve display and comprehensive tolerance handling. Additionally, this option offers a high-resolution Zoom-FFT of up to 0.4 Hz steps in the frequency range 1 Hz - 20 kHz.


XL2 Sound Level Meter

Waveform Viewer

The scope function visualizes the waveform of the electrical input signal. It automatically triggers to the fundamental frequency and selects the scaling of the X-axis (time) and Y-axis (level) accordingly. The fundamental, or most dominant, frequency of the input signal is displayed above the scope screen.


XL2 Sound Level Meter

Pass / Fail Testing

In batch production, undesireable vibration in a manufactured product can be detected by means of frequency analysis. The Pass/Fail test uses the frequency spectrum of a "good" product as a reference, and compares it against the spectrum of the current device under test.

With the spectral limits option installed, the Vibration Meter can be integrated into a production line to execute this process. A high-resolution zoom FFT or CPB with a resolution of up to 1/12 octave is available for frequency analysis. Captures (memory for frequency spectra) and their averaging allow simple creation of reference spectra for later comparison.

The Pass/Fail results are visualized on the display as well as via the Limit LED, and are logged as text files. With the " Remote Measurement" option, measurements can be started via the USB interface and the results retrieved.


XL2 Sound Level Meter

And even more... - Acoustic Analysis included

This versatile vibration meter can do even more! As soon as the user attaches a suitable measurement microphone, the Vibration Meter automatically switches to the "Acoustic Mode". Therefore, the vibration meter instantly becomes a multifunctional sound level meter with a wide range of acoustic functions.


Data Analysis and Reporting

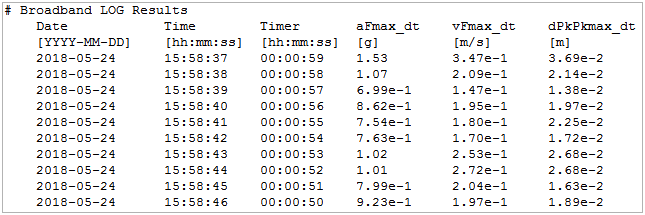

The Vibration Meter stores all vibration measurement data in text format (*.txt) and audio as wave files (*.wav) on the SD card and allows direct transfer of all data to your computer. Data reports can be opened with any text editor (Notepad, Wordpad, etc). The data is tab-delimited, so dropping the .txt file into a spreadsheet application will conveniently show the results in columns.

Wave files contain files names, date, time and scale in the broadcast header, simplifying its allocation and manipulation.


Log File

Your Partner in Measurements

Take advantage or our worldwide partner network - global presence paired with local expertise. Contact your local NTi Audio representative and discuss with them your vibration and acoustic measurement challenges.

Configurations

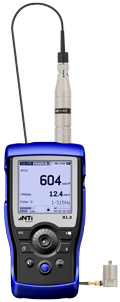

XL2 with M4260 Measurement Microphone

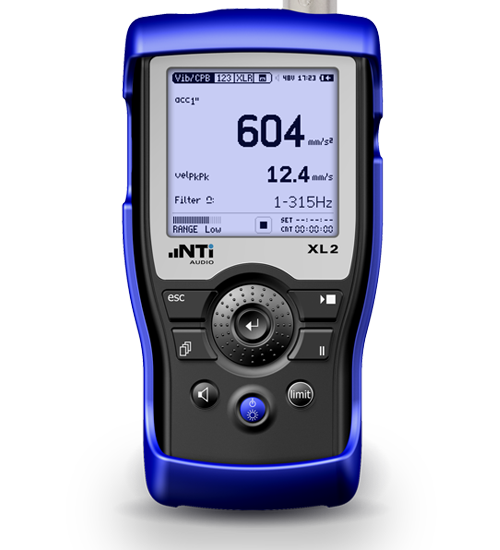

Vibration Meter Set

including
  • XL2 Audio and Acoustic Analyzer
  • Vibration Meter Option
  • ICP Adapter ASD
  • With your preferred Accelerometer
