室内音響レポーター

Room Acoustic Software

The Room Acoustics Reporter is a PC software for automatically generating reverberation time measurement reports and analyzing the RTA frequency response spectrum. The software supports acousticians and experts in the visualization and detailed evaluation of measurement data recorded with the XL2 Sound Level Meter.

At a glance

  • Reverberation time RT60 according to the ISO 3382 or DIN 18041 standards
  • Import of absorption coefficients
  • Comparison before / after acoustic measurements
  • RTA frequency response spectrum according to the IEC 60260 standard
  • Standard-compliant Reporting

Analyzing Reverberation Time or Noise Spectra

The Room Acoustics Reporter software is the ideal tool for data analysis and reporting of the following measurements:

  • Reverberation time RT60
    • Before / after comparison of acoustic measurements

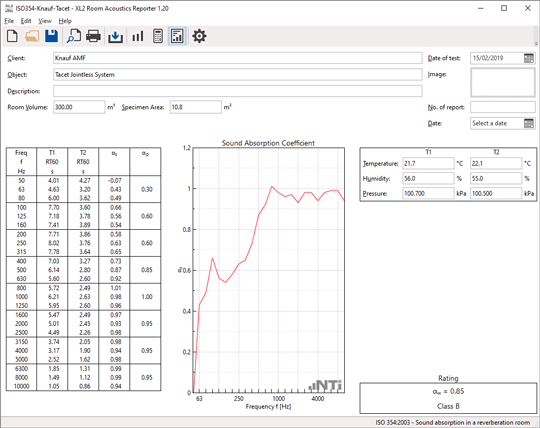

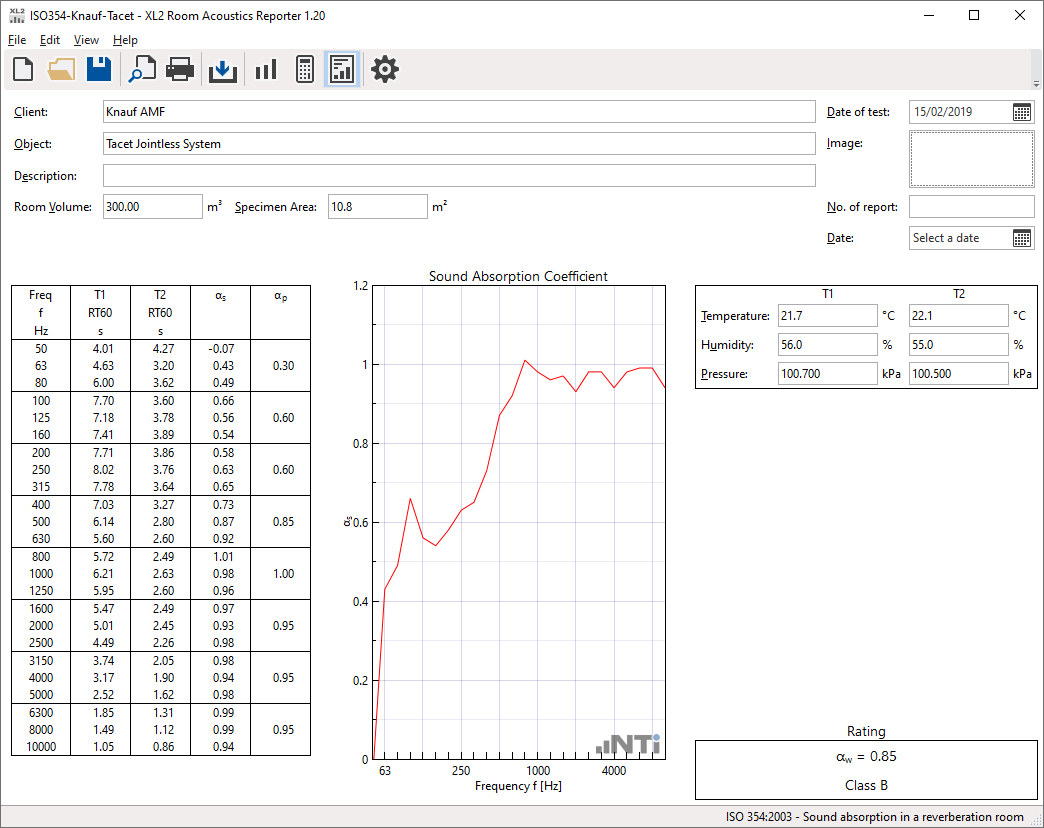

    • Adding sound-absorbing materials for evaluation
    • Comparison with standard-specific tolerances

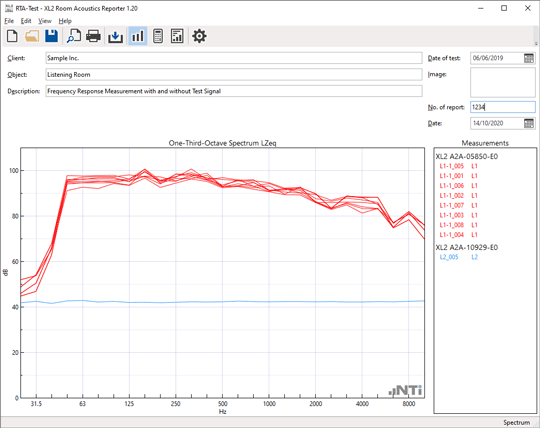

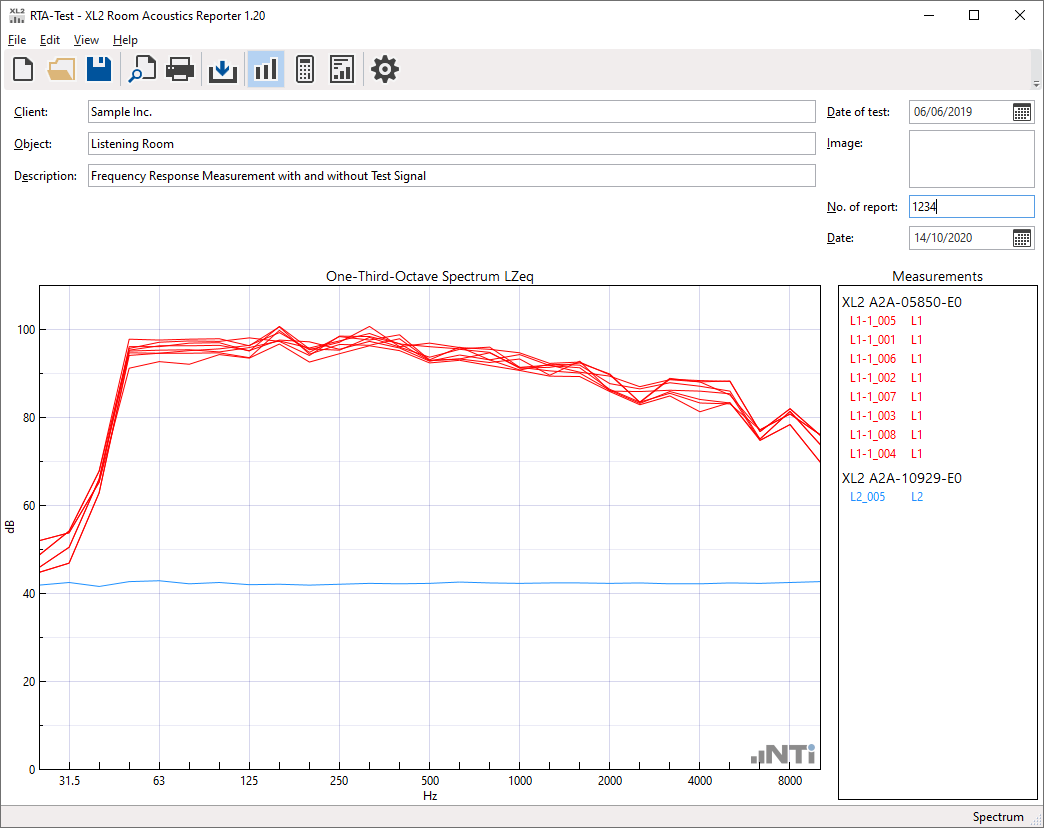

  • RTA frequency response spectrum
    • Averaging of noise spectra recorded at multiple measurement positionsa
    • Calculation of the sound level difference D between two rooms
    • Background noise correction

Measurements View

Drag & drop the measurement data into the software. All measurement data is automatically assigned to the corresponding data set before or after changing the acoustic properties of the room.

Projector PRO XL View

Calculations View

Evaluate the individual data sets for each measurement. The software presents the RT60 spectrum of each level drop in the room.

Projector PRO XL View

Results View

The Room Acoustics Reporter displays the average reverberation time in a table and in a standard 50 Hz to 10 kHz graph. At the same time, the average reverberation time in the middle frequency range RT60mid is stated in the measurement report..

Room Acoustics Reporter

Reporting

With the completed descriptions of the measurements taken, the standardized measurement report is ready for printing. Customized documentation is supported by the user-defined logo and signature.

Room Acoustics Reporter Reporting

Evaluate Room Acoustics Reporter now

Feel free to test the Room Acoustics Reporter software with demo data. Room Acoustics Reporter is a free-to-use PC software. The data import from the XL2 Sound Level Meter is chargeable.

Download Software    Download Demo Data

System requirements: PC with Windows Vista, 7, 8.x, 10

Downloads

How to import my data sets into the Room Acoustics Reporter?

Room Acoustics Reporter 365

The purchase of a Room Acoustics Reporter 365 subscription allows the unlimited import of measurement data from one XL2 Sound Level Meter into the Room Acoustics Reporter PC-Software for a period of one year. Data which has been recorded prior the installation of the Room Acoustics Option may then also be imported.

Room Acoustics Option

A permanent license is available as an alternative to the annual subscription service. The Room Acoustics Option installed on a XL2 enables the unlimited import of measurement data into the Room Acoustics Reporter PC-Software.

Installation on multiple PCs

The Room Acoustics Reporter software can be installed on multiple computers. This provides experts with the freedom to distribute their measurement projects among team members and clients.

Using the software with full functionalities

The full software functionality is enabled by having the following options installed in the XL2 Sound Level Meter:

  • Extended Acoustic Pack (activates the functionality for measuring the reverberation time RT60 in the third-octave band)
  • Room Acoustics Reporter 365 or Room Acoustics Option

Configurations



Room Acoustics Reporter 365

annual subscription service


XL2 Room Acoustics Option

permanently installed option in XL2 Sound Level Meter
